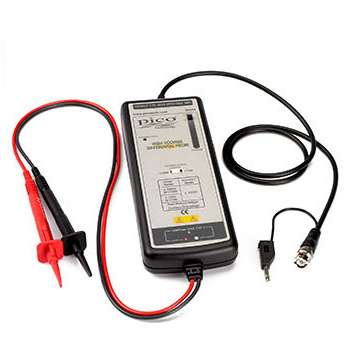

PICO TA044 ຄວາມແຕກຕ່າງຂອງ Oscilloscope Probe (7000V, 70MHzx100/1000 CAT I)
Bandwidth: DC to 70MHz (–3 dB)
Attenuation: 100:1/1000:1
Accuracy: ±2%
Input impedance: 10 M Ω // 10 pFeach side to ground
Input voltage:
Differential range:
±700 V (DC + peak AC) or 700 V RMS at 100:1
±7000 V (DC + peak AC) or 5000 V RMS at 1000:1
Common mode range: ±7000V (DC + peak AC) or 2500 V RMS
(100:1 & 1000:1)
Output voltage:
Swing: ±7 V into 5 kΩ load
Offset (typical): <±5 mV
Noise (typical): 0.9 mV RMS
Source impedance (typical): 50 Ω
CMRR (typical): 80 dB at 60 Hz; 50 dB at 1 MHz
Ambient operating temperature: –10 to 40 °C
Ambient storage Temperature: –30 to 70 °C
Power requirements:
Standard:4xAA cells or 6 V DC / 200mA mains adaptor or regulated 9 V DC / 120 mA mains adaptor
Length of input leads: 60 cm
Length of BNC lead: 90 cm
Weight: 500 g
Dimension (LxWxH): 202 mm x 83 mm x 38 mm
