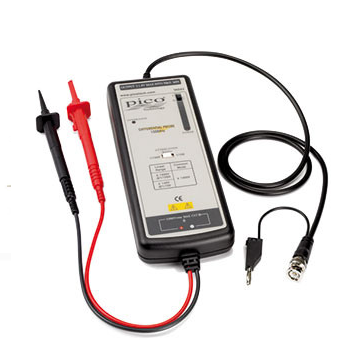

PICO TA043 ຄວາມແຕກຕ່າງຂອງ Oscilloscope Probe (700V, 100MHzx10/100 CAT III)
Bandwidth: DC to 100 MHz (–3 dB)
Attenuation: 10:1/100:1
Accuracy: ±2%
Input impedance: 4 MΩ ∥ 7 pF each side to ground
Input voltage:
Differential range (10:1): ±70 V (DC + peak AC) or 70 V RMS
Differential range (100:1): ±700 V (DC + peak AC) or 500 V RMS
Common mode range: ±700 V (DC + peak AC) or 500 V RMS
(10:1 and 100:1)
Absolute max. voltage (differential or common mode): 1000 V RMS CAT III (10:1 and 100:1)
Output voltage:
Swing ±7V into 50 kΩ load
Offset (typical): <±5 mV
Noise (typical): 0.9 mV RMS
Source impedance (typical): 50 Ω
CMRR (typical): 85 dB at 50 Hz; 55 dB at 1 MHz
Ambient operating temperature: –10 to 40 °C
Ambient storage Temperature: –30 to 70 °C
Power requirements:
Standard:4xAA cells or 6 V DC / 200 mA mains adaptor or regulated 9 V DC / 120 mA mains adaptor
Option: Power leads
Length of input leads: 30 cm
Length of BNC lead: 90 cm
Weight: 500 g
Dimension (LxWxH): 202 mm x 83 mm x 38 mm
