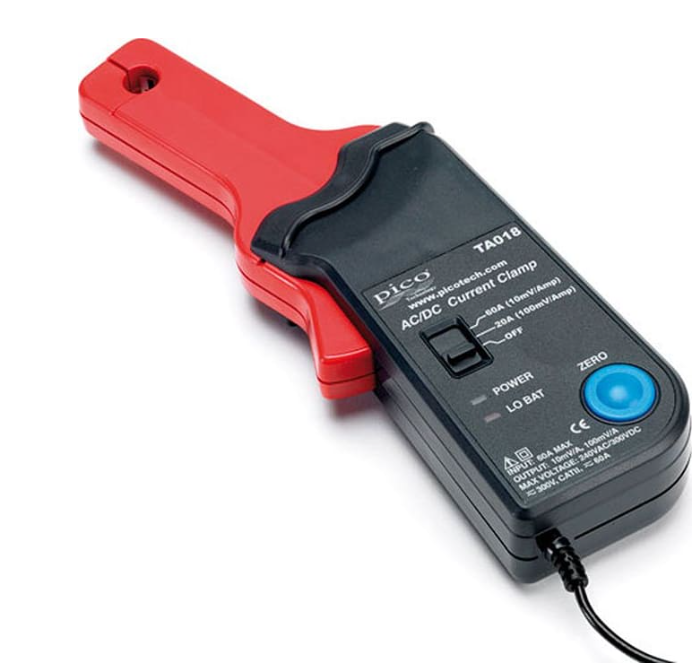

PICO TA018 ອະຊີ/ດີຊີ ອຸປະກອນວັດກຳລັງກະສິກ (BNC Connector)

Low level (DC) input range (1 mV / 10 mA): from 10 mA to 20 A.

High level (DC) input range (1 mV / 100 mA): from 100 mA to 60 A.

Low level (AC RMS) input range (1 mV / 10 mA): from 10 mA to 20 A.

High level (AC RMS) input range (1 mV / 100 mA): from 100 mA to 60 A.

AC frequency range: up to 20 kHz.

Maximum conductor size: 9 mm.

Output connector: BNC.

Operating environment: from 0 °C to 50 °C, 70% humidity.

Dimensions: 195 mm x 70 mm x 33 mm.

Battery type: 9 V DC, NEDA 1604, 6F22, 006P. Battery life: approximately 100 hours when using alkaline batteries.
