- Input channels: 8
- Bandwidth (−3 dB):20 MHz
- Maximum sampling rate: 80 MS/s
- Buffer memory: 256 MS
- Arbitrary waveform generator: 80 MS/s
- PC connectivity: SuperSpeed USB 3.0 (USB 1.1 and USB 2.0 compatible)
- Power requirements: Powered from single USB 3.0 port or two USB 2.0 ports
- Dimensions (including connectors): 190 x 170 x 40 mm
- Weight < 0.55 kg
- Temperature range
+ Operating: 0 °C to 45 °C (20 °C to 30 °C for stated accuracy)
+ Storage: −20 °C to +60 °C
- Humidity range
+ Operating: 5% to 80% RH non-condensing
+ Storage: 5% to 95% RH non-condensing
- Pack contents

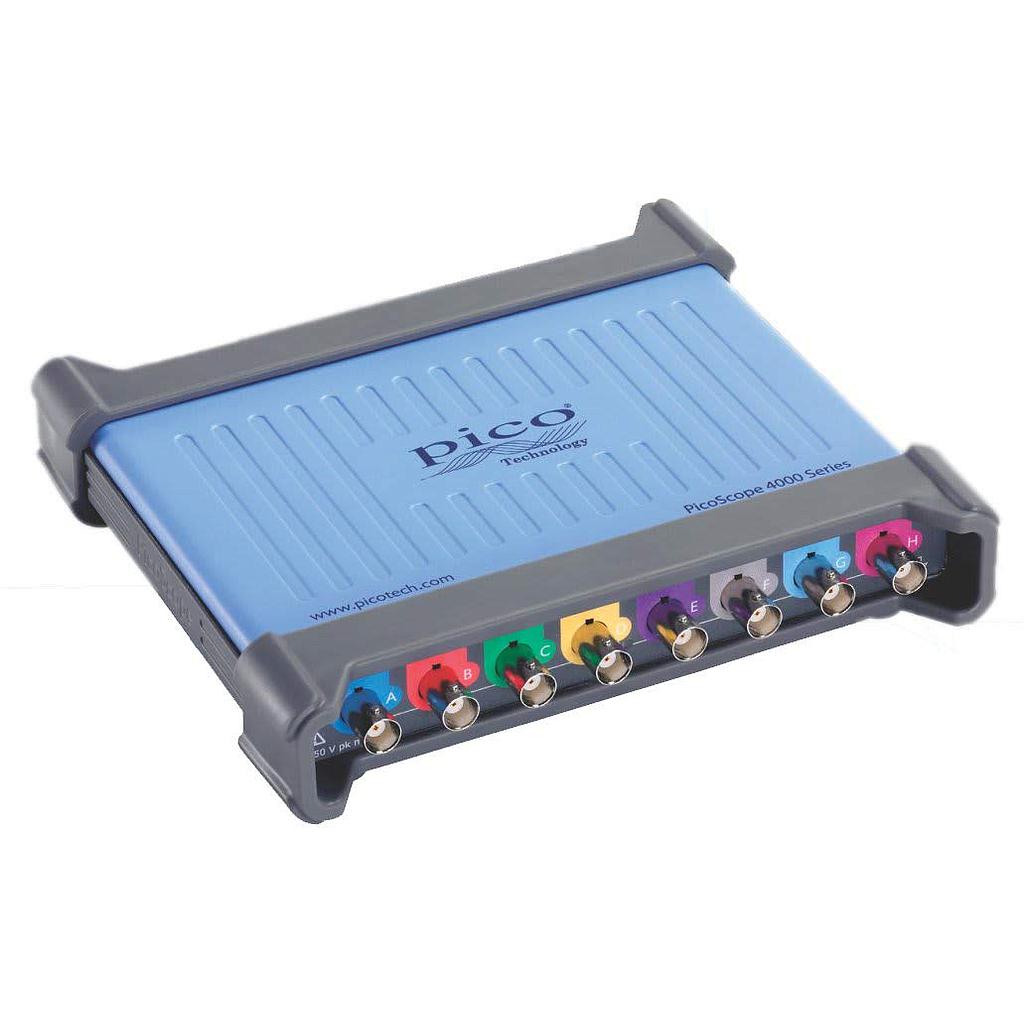

+ PicoScope 4824 oscilloscope
+ USB 3.0 cable 1.8 m
+ USB 2.0 cable 1.8 m, double-headed
+ Quick Start Guide
+ Software and reference CD
- Optional accessories
+ MI007 Passive voltage probe 60 MHz x1/x10
+ TA041 Active differential probe 25 MHz x10/x100,±700 V CAT III
+ A057 Active differential probe 25 MHz x20/x200,±1400 V CAT III
+ PS008 Optional power supply
+ TA167 2000 A AC/DC current clamp
