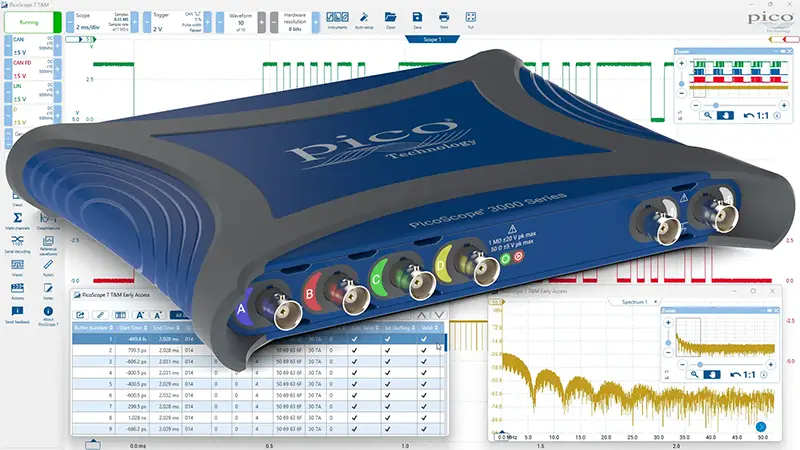

Vertical (analog channels)
Input channels: 4
Bandwidth (–3 dB): 100 MHz
Rise time (10% to 90%, −2 dB full scale): 3.5 ns
Selectable bandwidth limits: 20, 50, 100 MHz
Vertical resolution: 8 bits, 10 bits
Enhanced vertical resolution (software): Hardware resolution + 4 bits
Input connector: BNC(f)
DC gain accuracy: ±(1% of signal + 1 LSB)
DC offset accuracy :±(2% of full scale + 200 µV); Offset accuracy can be improved by using the “zero offset” function in PicoScope.
LSB size (quantization step size)
+ 8-bit mode: < 0.4% of input range
+ 10-bit mode: < 0.1% of input range
Analog offset range(vertical position adjustment):
±250 mV (±5 mV to ±200 mV ranges)
±2.5 V (±500 mV to ±2 V ranges)
±5 V (±5 V range, 50 Ω input)
±20 V (±5 V to ±20 V ranges, 1 MΩ input)
Analog offset control accuracy : ±1% of offset setting, additional to DC accuracy above
Overvoltage protection
1 MΩ: ±100 V (DC + AC peak) up to 10 kHz
50 Ω: 5.5 V RMS max, ±20 V pk max
Vertical (digital channels) - MSO only
Input channels: 16 (2 logical ports of 8 channels each)
Input connector: 2.54 mm pitch, 10 x 2 way connector
Maximum input frequency: 100 MHz (200 Mbit/s)
Minimum detectable pulse width :5 ns
Threshold grouping: Two independent threshold controls. Port 0: D0 to D7, Port 1: D8 to D15
Threshold range: ±5 V
General specifications
PC connectivity: USB 3.0 SuperSpeed (USB 2.0 compatible)
PC connector type: USB 3.0 Type-C
Power requirement: Powered from single USB Type-C 3 A port or from USB port plus external Type-C PSU (5 V, 3 A)
Status indicators: RGB LED per BNC connector plus power and status
Thermal management :Automatic fan speed control for low noise
Dimensions: 221 x 173 x 30 mm
Weight: < 0.7 kg
Ambient temperature range
Operating: 0 to 40 °C
For quoted accuracy: 15 to 30 °C after 20-minute warm-up
Storage: –20 to +60 °C
Humidity range: Operating 5 to 80 %RH non-condensing; Storage: 5 to 95 %RH non-condensing
Altitude: Up to 2000 m
Pollution degree: EN 61010 pollution degree 2: “only nonconductive pollution occurs except that occasionally a temporary conductivity caused by condensation is expected”
Safety compliance: Designed to EN 61010-1
EMC compliance: Tested to EN 61326-1 and FCC Part 15 Subpart B
Environmental compliance: RoHS, REACH & WEEE
