- Function and Applications:
Basic set allowing the performance of 17 experiments about the following topics:
Energy conversion (5 Experiments)
Heat energy from solar energy (7 Experiments)
Ambient Heat (5 Experiments)
Among other, everyday relevant topics such as global warming and thermal insulation are raised.
- Benefits:
Complete equipment set for 17 experiments
Covers energy conversion, heat energy from solar energy, ambient heat
The equipment is stored in a rugged, stackable and compact box, allowing quick controlif set content is complete
Matched with international curriculum: all topics are covered
Covers major interdisciplinary and key technologies
Easy teaching and efficient learning through the digital experiment descriptions enclosed as QR codes
Together with the two supplementary sets, more than 30 additional experiments can be carried out covering solar, wind, water energy and fuel cell technology
Equipment and Technical Data:

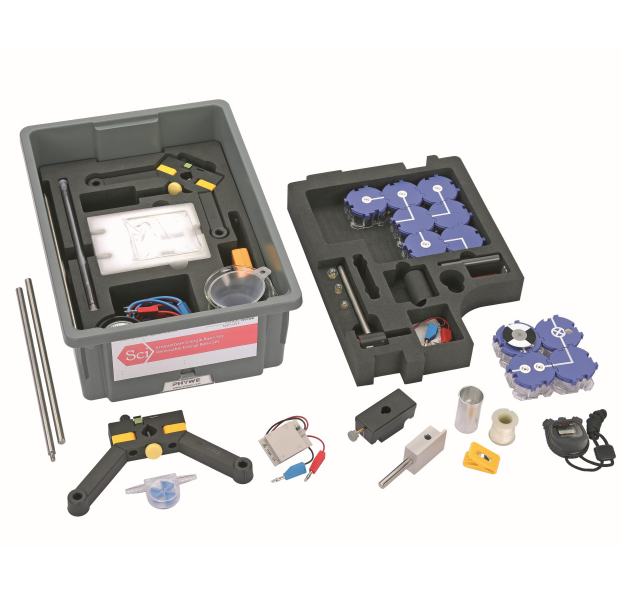

The equipment set consists of all necessary components for the experiments
Robust, stackable storage box with a foam insert fitting to the contained equipment
- Scope of delivery:
Support base, variable: 02001-00 (1)
Fishing line, l. 20m: 02089-00 (1)
Felt sheet, 100 x 100 mm: 04404-20 (1)
Angled connector module, SB: 05601-02 (4)
Interrupted connector module with sockets, SB 05601-04 (1)
Junction module, SB: 05601-10 (4)
Socket module for incandescent lamp E10, SB: 05604-00 (1)
Motor with indicating disc, SB: 05660-00 (1)
Generator with metrical thread axis and nut: 05751-01 (1)
Solar collector for student experiments: 05760-00 (1)
Thermal generator for student experiments: 05770-00 (1)
Halogen lamp with reflector, 12V / 20W: 05780-00 (1)
Mount for halogen lamp with reflector: 05781-00 (1)
Beaker, aluminum, polished: 05903-00 (1)
Beaker, black: 05904-00 (1)
Lamp 4 V/0,04 A,E 10 socket: 06154-00 (1)
Solar cell 3.3 x 6.5 cm, with plugs, 0.5 V, 330 mA: 06752-09 (1)
Holder for solar cell 3.3 x 6.5 cm, with plugs: 06752-08 (1)
Double sockets,1 pair,red a.black: 07264-00 (1)
Connecting cord, 32 A, 500 mm, red | Length: 250 mm: 07360-01 (2)
Connecting cord, 32 A, 500 mm, blue | Length: 250 mm: 07360-04 (2)
Connecting cord, 32 A, 500 mm, red | Length: 500 mm: 07361-01 (2)
Connecting cord, 32 A, 500 mm, blue | Length: 500 mm: 07361-04 (1)
Slide mount for optical bench: 09822-00 (1)
Measuring tape, l = 2 m: 09936-00 (1)
Digital stopwatch, 24 h, 1/100 s and 1 s: 24025-00 (1)
Beaker, 100 ml, plastic (PP): 36011-01 (1)
Beaker, boro, low-form | Volume: 400 ml: 46055-00 (1)
Lab thermometer,-10..+110 °C: 38056-00 (2)
Silicone tubing, inner diameter 3 mm | diameter: 7 mm: 39296-00 (1)
Flow indicator for liquids: 46434-00 (1)
Funnel, diameter = 60 mm, plastic (PP) | Top diameter: 75 mm: 46895-00 (1)
TESS box, plastics, high, 305 x 425 x 150 mm: 15200-00 (1)
Lid for TESS box, plastic: 15205-00 (1)
Support rod 300 mm with thread M6: 331590 (2)
- Necessary accessories:
Student set Renewable energy 1, necessary accessories for 1 group, TESS advanced Applied Sciences: 13480-88
