PHYWE 25266-88 ນັກສຶກສາຊຸດໄຟຟ້າ/ເອເລັກໂຕຼນິກ 2 ທີ່ມີຕຶກອາຄານ

- Function and Applications:

Supplementary equipment set for Electric/Electrononics Building Block System Basic set 1. In combination with this set, another 18 student experiments can be performed:

• Electromagnetism (6 experiments)

• Electric motors (3 experiments)

• Induction (3 experiments)

• Transformers (2 experiments)

• Self-Induction (3 experiments)

• Safe Working with Electrical Energy (1 experiments)

- Benefits:

• Complete equipment set: simple execution of the experiments

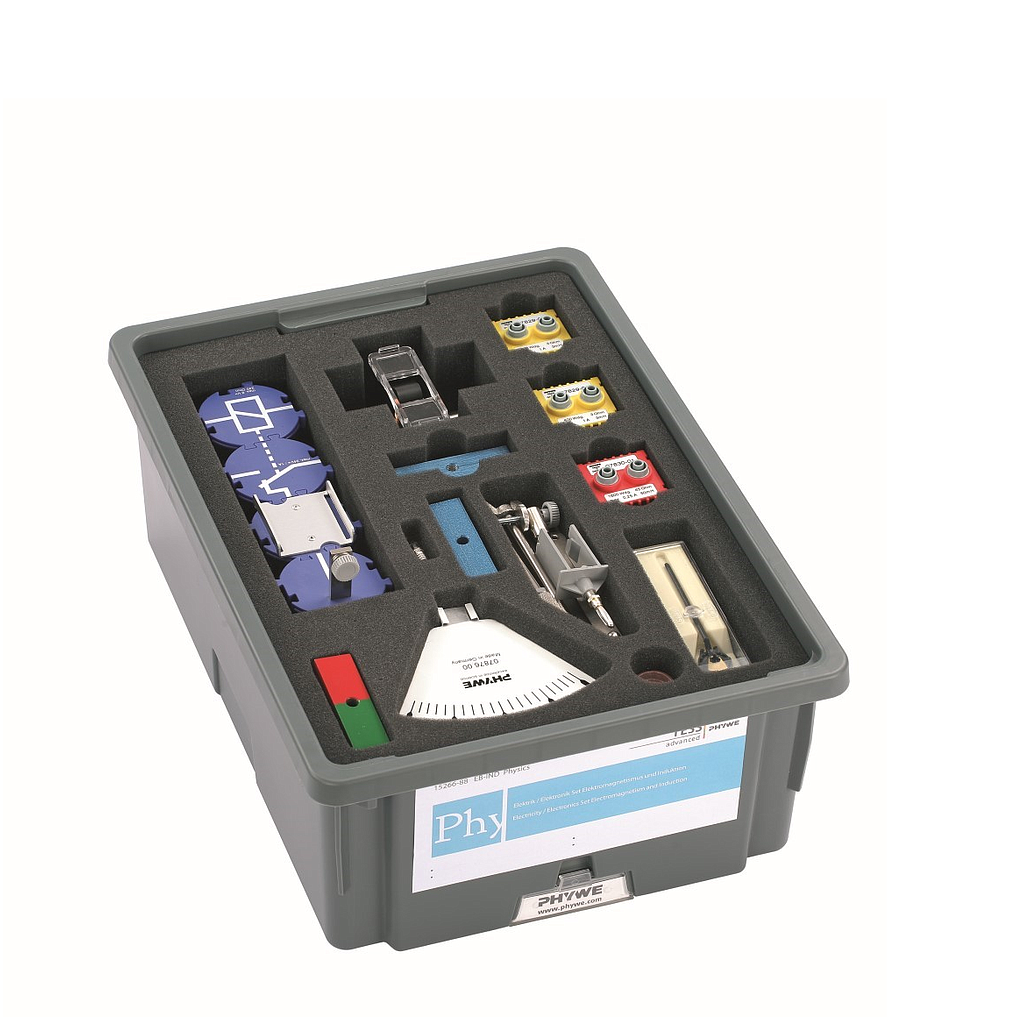

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Experimenting literature for pupils and teachers available: minimal preparation time

• Matched with international curriculum: all topics are covered

• The circuits are assembled directly on student's desk and the safe electric contact is guaranteed by the use of a unique puzzle block system with corrosion-free gold plated contacts. No breadboard is required.

• Rugged -PUZZLE- blocks featuring contrasted screen-printed electric symbol on top

• Easy teaching and efficient learning through the digital experiment descriptions enclosed as QR codes

- Equipment and Technical Data:

The equipment set consists of all necessary components for the experiments

- Scope of delivery:

• Coil, 400 turns: 07829-01, 2

• Coil, 1600 turns: 07830-01, 1

• Contact spring with armature: 05673-00, 1

• Contact element on 4-mm-plug: 05673-01, 1

• Tightening screw: 07834-00, 1

• Rotating stem: 07836-00, 1

• Notch bearing with plug: 07877-00, 1

• Galvanometer movement: 07875-00, 1

• Drawing compass , 1 units: 06350-03, 1

• Galvanometer scale: 07876-00, 1

• Magnet, l = 72mm, rodshaped, colored poles: 07823-00, 1

• Coil holder module, SB: 05672-00, 1

• Neon lamp 110 V AC, E10: 07506-90, 1

• Iron core, I-shaped, laminated: 07833-00, 1

• Universal holder module, SB: 05603-00, 1

• Iron core, U-shaped, laminated: 07832-00, 1

• Relais module 6 V, SB: 05674-00, 1

• Motor model for student experiments: 07850-10, 1

- Necessary accessories:

• Student set Electricity / Electronics 1 with Building Blocks, TESS advanced Physics: 25264-88

• Student set Electrics /Electronics 1, necessary accessories for 1 group, TESS advanced Physics: 13470-88

• Student set Electrics / Electronics 1, consumables for 10 groups, TESS advanced Physics: 13471-88

- Recommended accessories:

• Handbuch Schülerversuche Elektrik/Elektronik Baustein-System 1 und 2, TESS advanced Physik, (in german): 01006-01
