PHYWE 15530-88 DEMO ຟີຊິກຂັ້ນສູງຕັ້ງຄວາມຮ້ອນ (grade 5-7 , grades 7-10)

- Function and Application:

Equipment set allowing the performance of 15 experiments about the following topics:

• Thermal Expansion (6 experiments)

• Heat Transfer (4 experiments)

• Thermal Energy (3 experiments)

• States of Matter (2 experiments)

- Benefits:

• Optimised for demonstration experiments: Transformation from horizontal into vertical direction with the help of the Demo board

• Demonstrative display of the measured values on the digital large-scale display

• Secure fastening of burners and hot vessels

• Glass equipment, liquid levels and flowing liquids can be observed easily on the plain background

• Complete equipment set: Simple execution of the experiments

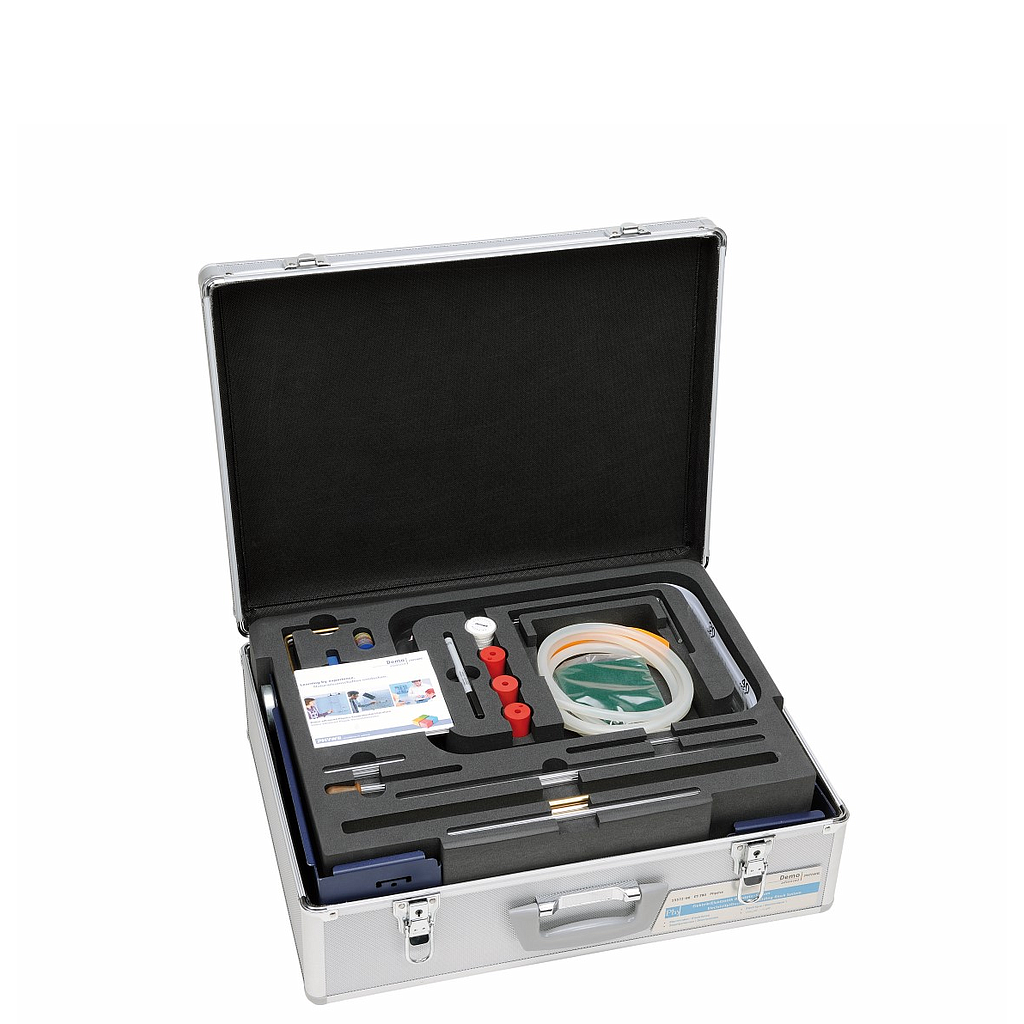

• The equipment is stored in a robust aluminum case with removable lid

• Foam insert for a quick control of completeness and secure transport of the set

• Matched with international Curriculum: All topics are covered

- Equipment and Technical Data:

The equipment set consists of all essential components for the experiments

robust storage case with foam insert fitting to the contained equipment

- Scope of delivery:

• Rod on fixing magnet: 02151-02, 1

• Clamp.holder d=28-36mm fix.magn.: 02151-06, 2

• Clamping holder, 0-13 mm, fixing magnet: 02151-07, 2

• Scale for demonstration board: 02153-00, 1

• Pointers f. Demonst.Board, 4 pcs: 02154-01, 1

• Marker points for demonstration board, 24 pcs: 02154-02, 1

• Support plate on fixing magnet: 02155-00, 1

• Burner-holder on fixing magnet: 02162-00, 1

• Wire gauze holder on fix. Magnet: 02163-00, 1

• Clamp on holder: 02164-00, 1

• Wire gauze with ceramic, 160 x 160 mm: 33287-01, 1

• Brass tube: 04234-11, 1

• Iron tube: 04234-12, 1

• Aluminium tube: 04234-13, 1

• Collar for linear expansion: 04231-55, 1

• Rotating shaft with pointer: 04236-01, 1

• Thermometer, non-graduated: 04256-00, 1

• Metal bodies, set of 3: 04406-00, 2

• Convection of liquids tube: 04510-00, 1

• Beaker, aluminum, polished: 05903-00, 2

• Aluminium rod,U-shaped: 05910-00, 1

• Copper rod, U-shaped: 05910-01, 1

• Brass rod, U-shaped: 05910-02, 1

• Glass rod,U-shaped: 05911-00, 1

• Test tube, d 30mm, l 200mm, black: 36294-06, 1

• Test tube, d = 30 mm, l = 200 mm, white: 36294-05, 1

• Beaker, 100 ml, plastic (PP): 36011-01, 1

• Beaker, boro, low-form | Volume: 250 ml: 46054-00, 1

• Beaker, boro, low-form | Volume: 400 ml: 46055-00, 1

• Graduated cylinder, high ,PP, 500 ml | Volume: 100 ml: 36629-01, 1

• Graduated cylinder, high ,PP, 500 ml | Volume: 250 ml: 36630-01, 1

• Pipette with rubber bulb: 64701-00, 1

• Glass rod, boro 3.3, l=200mm, d=5mm: 40485-03, 1

• Rubber stopper 26/32, 1 hole 7 mm: 39258-01, 1

• Rubber stopper 26/32, 2 holes 7 mm + 2,5 mm: 39258-13, 2

• Funnel, diameter = 50 mm, plastic (PP): 36890-00, 1

• Silicone tubing, inner diameter 3 mm | diameter: 6 mm: 47530-00, 2

• Heat sensitive paper: 04260-00, 2

• Felt sheet, 100 x 100 mm: 04404-20, 2

• Fishing line, l. 20m: 02089-00, 1

• Marker, black: 46402-01, 1

• Microspoon, steel: 33393-00, 1

• Erlenmeyer flask, stopper bed, 100 mlSB 29: MAU-EK17082301, 2

- Necessary accessories:

• DEMO advanced Heat necessay acessories 15530-01

• PHYWE Demo Physics board with stand 02150-00

- Recommended accessories:

• Moveable experimental table 90 x 75 cm, 30 mm table top withPP edge, with shelf for 3 boxes and socket board 15500-00

• Ball and ring 04212-01

• Pin shearing apparatus 04220-00

• Tin can, 1 litres 02678-02

• Calorimeter, 500 ml 04401-00

• Handbuch Lehrerversuche Wärme auf der Tafel, DEMO advanced Physik (WT), (in german) 01154-01
