- Function and Applications:
Supplementary equipment set for the DEMO Set Mechanics 1 (15510-88). In combination with the set Mechanics 1 another 19 demonstration experiments can be performed:
Forces (5 experiments)
Simple Machines (4 experiments)
Mechanical Forms of Energy (1 experiment)
Mechanics of Liquids and Gases (9 experiments)
- Benefits:
Magneto-adhesive and flexible track with a reinforced front edge, which allows to set up completely unconventional track shapes for experiments on the law of conservation of energy
Magneto-adhesive components ensure easy handling and freedom of positioning
Secure fastening using magnets with an adhesive force of at least 10 N
Easy marking of motions using colored arrows and points
Liquid levels are easy to observe on the plain background
The experiments can be modified in next to no time
Complete equipment set in addition to Mechanics 1

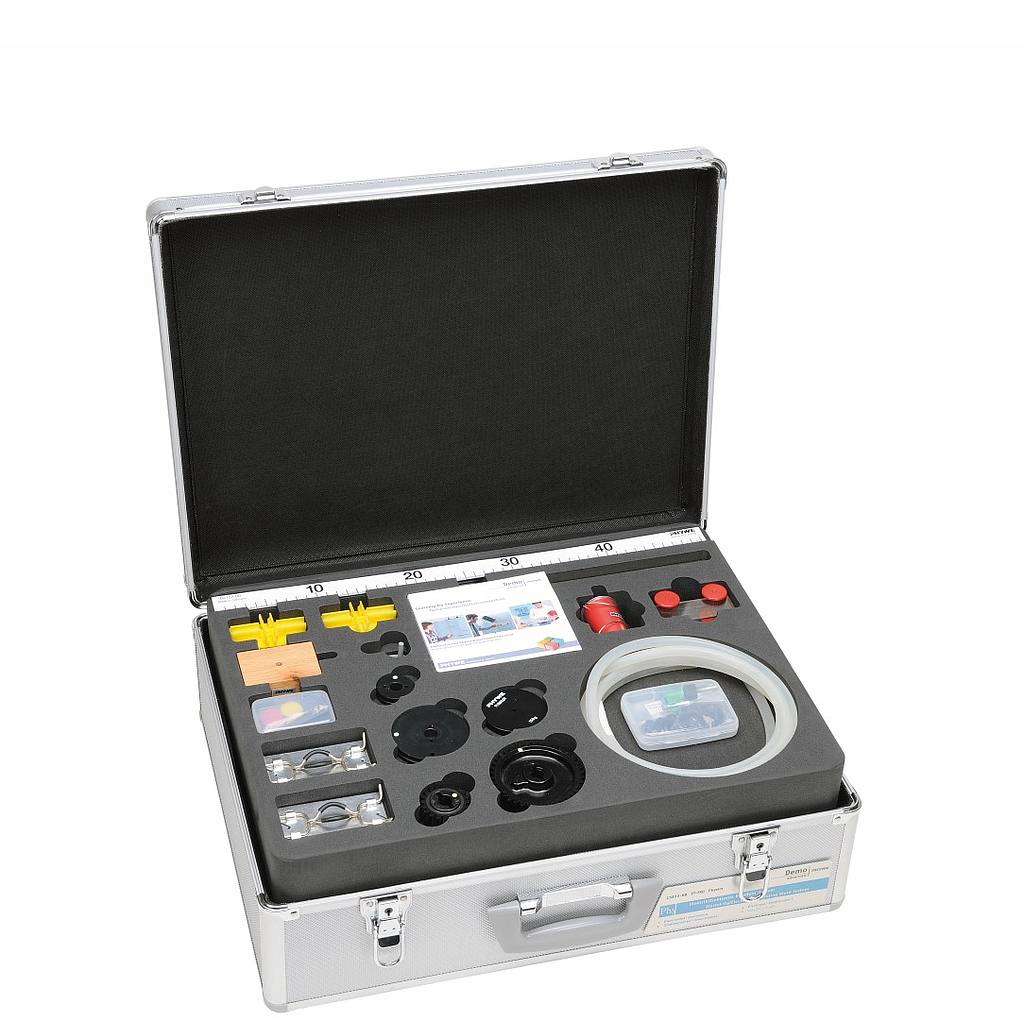

The equipment is stored in a robust aluminum case with removable lid
Foam insert for a quick control of completeness and secure transport of the set
Experimenting literature for all teacher experiments are delivered as PDF documents on a DVD
Matched with international Curriculum: all topics are covered
- Equipment and Technical Data:
The equipment set consists of all necessary components for the experiments
Robust storage case with foam insert fitting to the contained equipment
- Necessary accessories:
Demo Physics board with stand (02150-00)
DEMO advanced Mechanics 2 necessary accessories (15511-01)
DEMO advanced Physics Set Mechanics 1 (15510-88)
DEMO advanced Mechanics 1 necessary accessories (15510-01)
- Optional accessories:
DEMO advanced Physics Set Linear Motion (Dynamics) (15512-88)
Mobile Demo Lab for demonstration experiments with the a magnetic board (02190-93)
- Scope of delivery:
Scale for demonstration board 02153-00, 1
Leaf spring 02228-00, 1
Friction block 2240-01, 1
Gear wheel, 20 teeth 02350-13, 1
Gear wheel, 40 teeth 02351-03, 1
Axle on fixing magnet 02151-04, 2
Weight, 150 g, for 11060.00 11060-01, 1
Clamping holder, 0-13 mm, fixing magnet 02151-07, 1
Marker points for demonstration board, 24 pcs 02154-02, 1
Syringe holder on fixing magnet 02156-00, 2
Overflow vessel on fixing magnet 02158-00, 1
Rollercoaster track, fix.magnet 02159-00, 1
Immersion probe 02632-00, 1
Hollow and solid cylinder 02637-00, 1
Glass tube holder with tape measure clamp 05961-00, 2
Support rod, stainless steel, different lenghts | Length: 100 mm 02030-00, 1
Silicone tubing, inner diameter 3 mm | diameter: 6 mm 47530-00, 2
Funnel, diameter = 50 mm, plastic (PP) 36890-00, 1
Beaker, 100 ml, plastic (PP) 36011-01, 1
Hose clamp for 8-12 mm diameter 41000-00, 2
Gas syringe, 100 ml 02614-00, 2
Plunger plate for gas syringes 02618-00, 2
Commercial weight, 500 g 44096-50, 1
Commercial weight, 200 g 44096-20, 2
Storage tray, 413 x 120 x 100 mm 47325-01, 1
Nozzle for glass screwthread 43903-01, 1
