- Function and Applications:
Equipment set allowing the performance of 24 experiments about the following topics:
Forces (10 experiments)
Simple Machines (9 experiments)
Oscillation (3 experiments)
Mechanical Forms of Energy (1 experiment)
Mechanics of Liquids and Gases (1 experiment)
- Benefits:
Demonstrative measurement of forces with large circular dynamometers with a fixing magnet and ball-bearing pulley with two cord grooves for two measuring ranges
The experiments can be modified in next to no time
Magneto-adhesive angular disc and measuring scale facilitate the measurements
Coloured arrows enhancing observations and explanations
Easy teaching by using the demo board for demonstration
Magneto-adhesive components ensure easy handling and freedom of positioning
Secure fastening using magnets with an adhesive force of at least 10 N
Complete equipment set: simple execution of the experiments

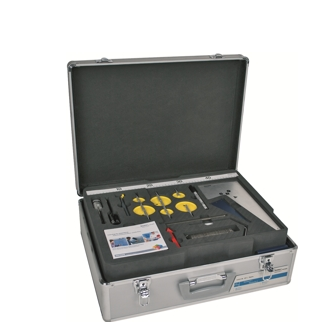

The equipment is stored in a robust aluminum case with removable lid
Foam insert for a quick control of completeness and secure transport of the set
Experimenting literature for all teacher experiments are delivered as PDF documents on a DVD
Matched with international Curriculum: all topics are covered
- Equipment and Technical Data:
The equipment set consists of all necessary components for the experiments
Robust storage case with foam insert fitting to the contained equipment
- Necessary accessories:
Demo Physics board with stand (02150-00)
DEMO advanced Mechanics 1 necessary accessories (15510-01)
- Optional accessories:
DEMO advanced Physics Supplementary Set Mechanics 2 (15511-88)
DEMO advanced Physics Set Linear Motion (Dynamics) (15512-88)
Mobile Demo Lab for demonstration experiments with the a magnetic board (02190-93)
- Scope of delivery:
Clamp on fixing magnet 02151-01, 1
Rod on fixing magnet 02151-02, 1
Hook on fixing magnet 02151-03, 1
Inclined plane f.demonstr.board 02152-00, 1
Scale for demonstration board 02153-00, 1
Pointers f. Demonst.Board, 4 pcs 02154-01, 1
Optical disk, magnet held 08270-09, 1
Torsion dynamometer 03069-03, 2
Weight holder, 10 g 02204-01, 2
Slotted weight, silver bronze, 10 g 02205-03, 4
Slotted weight, silver bronze, 10 g 02205-03, 4
Slotted weight, silver bronze, 50 g 02206-03, 2
Slotted weight, silver bronze, 50 g 02206-03, 2
Pulley,movable,dia.65mm,w.hook 02262-00, 1
Rod for pulley 02263-00, 1
Holding pin 03949-00, 1
Fish line, l. 100m 02090-00, 1
Helical spring, 20 N/m 02222-00, 1
Pulley,movable,dia.40mm,w.hook 03970-00, 1
Block and tackle, with 4 pulleys 02265-00, 1
Center-of-gravity plate 02300-01, 1
Balance pan, plastic 03951-00, 2
Lever 03960-00, 1
Pointer for demonstration lever 03963-00, 1
Roller for inclined plane 11301-01, 1
Rubber bands, 50 pieces 03920-00, 1
Support plate on fixing magnet 02155-00, 1
Sinker, aluminum 03903-01, 1
Beaker, Duran®, high-form | Volume: 600 ml 36006-00, 1
Marker, black 46402-01, 1
