- Function and Applications:
Equipmentc set allowing the performance of 16 experiments about the following topics:
Spectroscopic analysis (2 Experiments)
Diffraction on a grating (1 Experiment)
Diffratction on everyday life's objects (2 Experiments)
Absorption and fluorescence (3 Experiments)
h-Determination with light emitting diodes (1 Experiment)
Bandgap of semiconductors (1 Experiment)
Investigation of solar cells and fotodiodes (2 Experiments)
Electric and optical properties of LED (2 Experiments)
Polarisation of light (2 Experiments)
- Benefits:
Complete equipment set: simple execution of the Experiments
The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)
Experimenting literature for pupils and teachers available: minimal preparation time
Matched with international curriculum: all topics are covered
Through the use of a stable optical bench made of metal safe and exact experimental setups
Easy teaching and efficient learning by using the interactive Experimentation software interTESS
- Equipment and Technical Data:

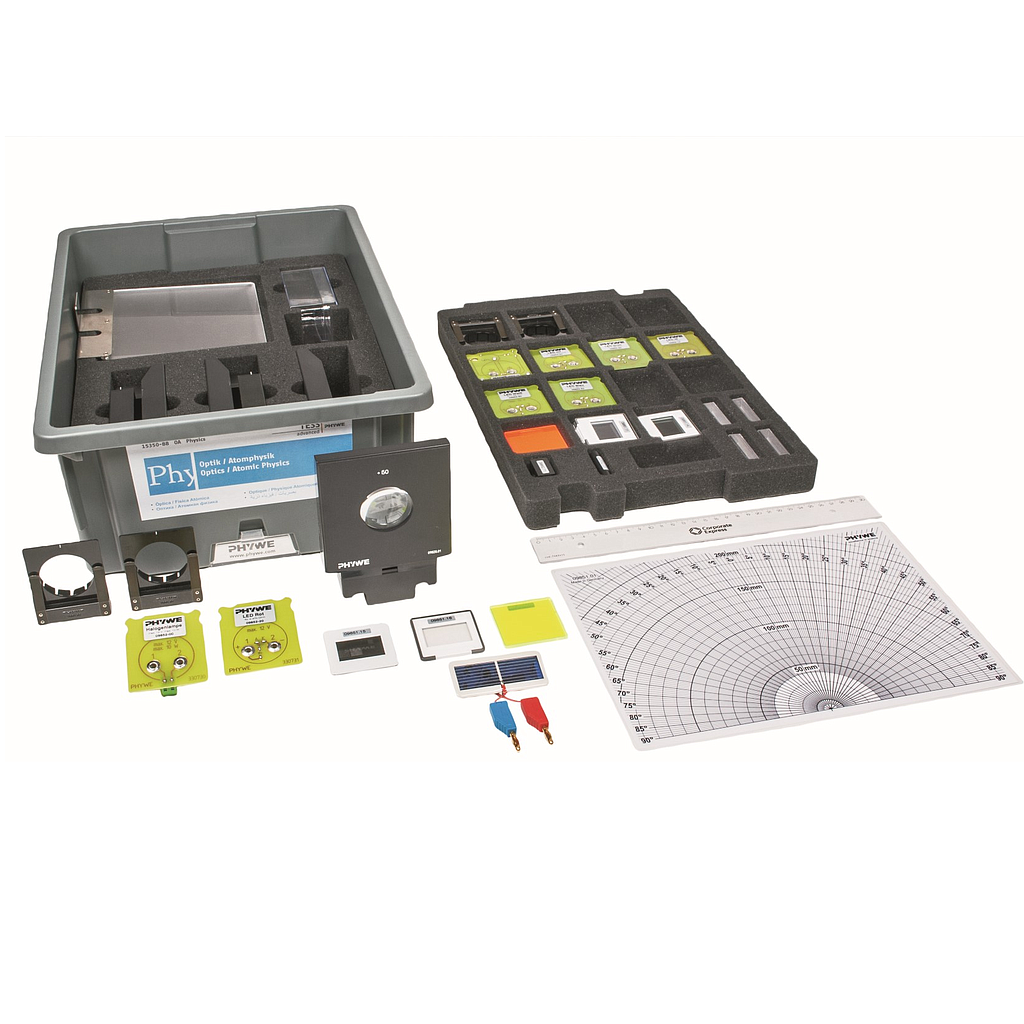

The equipment set consists of all necessary components for the Experiments
Robust, stackable storage box with a foam insert fitting to the contained equipment
- Necessary accessories:
TESS advanced Optics / Atomphysics necessary accessories for 1 group (13466-88)
- Optional accessories:
TESS advanced Physics manual optics/atomic physics (13286-02)
interTESS DVD, complete version with all Experiments in physics, chemistry, biology and applied sciences (01100-00)
interTESS DVD Physics, optics/atomic physics Experiments only (01056-00)
- Scope of delivery:
Optical profile-bench for student experiments, l = 600 mm: 08376-00, 1
Slide mount without angle scale: 09851-02, 2
Mount with scale on slide mount: 09823-00, 2
Diaphragm holder, attachable: 11604-09, 4
Lens on slide mount, f=+50mm: 09820-01, 1
Lens on slide mount, f=+100mm: 09820-02, 1
Screen, semitransparent, 150x150mm²: 09851-03, 1
Cuvette, plastic, W x D x H: 99 x 59 x 42 mm: 09851-05, 1
Universal bench: 09840-10, 1
Cuvette holder for universal bench: 09840-11, 1
Ruler, l = 30 cm: 09851-40, 1
Foil filter grey 50% in slide frame glasless: 09851-11, 5
Illumination slit, 0.5 mm, hardpaper: 09851-12, 1
Lambda/4 film, in slide frame, glassless: 09851-13, 1
Polarisation filter, in slide frame, glassless: 09851-14, 2
Diffraction objects acc.Koppelmann, in slide frame, glassles: 09851-15, 1
Grating, 500 lines/mm, in slide frame, glassless: 09851-16, 1
Plate, fluorescent, red: 09851-19, 1
Plate, fluorescent, yellow: 09851-20, 1
Plate, fluorescent, green: 09851-21, 1
Plate, fluorescent, blue: 09851-22, 1
Solar cell 3.3 x 6.5 cm, with plugs, 0.5 V, 330 mA: 06752-09, 1
Halogen lamp, 12 V/10 W, mounted with 4 mm plugs: 09852-00, 1
LED - IR, with series resistor and 4 mm plugs: 09852-10, 1
LED - red, with series resistor and 4 mm plugs: 09852-20, 1
LED - green, with series resistor and 4 mm plugs: 09852-30, 1
LED - blue, with series resistor and 4 mm plugs: 09852-40, 1
LED - UV, with series resistor and 4 mm plugs: 09852-50, 1
LED - white, with series resistor and 4 mm plugs: 09852-60, 1,
Light sensor with amplifier, adjustable: 09852-70, 1
Power supply, 5 V DC: 09852-99, 1
Stray light tube: 09852-71, 1
Stray light tube for LED, Di = 8 mm, l = 40 mm: 09852-01, 1
Angular scale, laminated: 09851-01, 1
Measuring tape, l = 2 m: 09936-00, 1
Lid for TESS box, plastic: 15205-01, 1
TESS box, plastics, high, 305 x 425 x 150 mm: 15200-01, 1
