PHYWE 15321-88 ນັກສຶກສາຊຸດອາຄາສຕິກ 2 (grades 7-10 , Class 10-13)

- Function and Applications:

Supplementary equipment set for TESS set Acoustics 1 (15289-88). Together with the set Acoustics 1, it is possible to perform 22 student experiments in total:

• Generation, propagation and perception of sound

• Physical properties: Oscillations and waves

• Applications in the field of medicine, music, and everyday life

- Benefits:

• Complete equipment set: simple execution of the experiments

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Matched with international curriculum: all topics are covered

• Experimenting literature for pupils and teachers available: minimal preparation time

• Multidisciplinary treatment of the subject acoustics: physics, biology and music

• More than 20 documented experiments, mainly software- based

• Powerful educational software for generation and analysis of acoustic signals

- Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments

• Robust, stackable storage box with a foam insert fitting to the contained equipment

- Necessary accessories:

• For the software-based experiments, speakers, earphones and microphone are required

• TESS advanced Apllied Sciences set Acoustics 1 (13289-88)

Optional accessories:

• TESS advanced Applied Sciences manual Acoustics (13289-02)

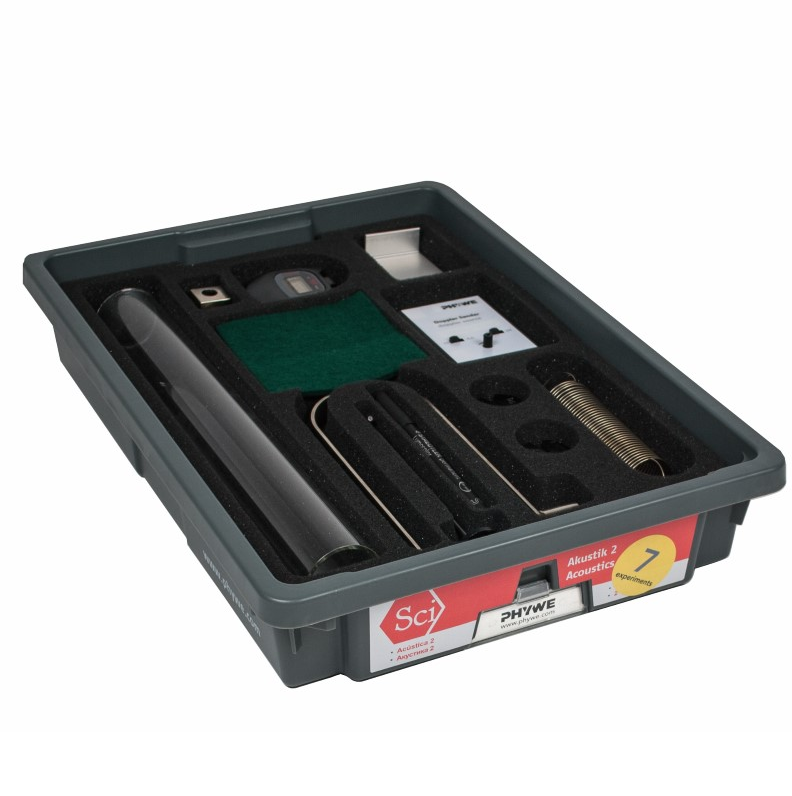

- Scope of delivery:

• Glass tube, d(outside) = 44 mm, l = 340 mm: 13289-20, 1

• Felt sheet, 100 x 100 mm: 04404-20, 1

• Weight holder, 10 g: 02204-01, 1

• Slotted weight, silver bronze, 50 g: 02206-03, 2

• Digital stopwatch, 24 h, 1/100 s and 1 s: 24025-00, 1

• Tuning fork with pen: 13289-00, 1

• Doppler source for TESS Acoustics: 13289-30, 1

• Metal angle bracket for glass tube o.d. = 44 mm: 13289-16, 2

• Lid for TESS box, plastic:15205-00, 1

• TESS box, plastics, low, 305 × 425 × 75 mm: 15201-00, 1
