PHYWE 15275-88 ນັກຮຽນຕັ້ງຄວາມຮ້ອນ 2 (grades 7-10)

- Function and Applications:

Supplementary equipment set for TESS Basic Set Heat 1 (15274-88). Together with the Basic set it is possible to performe 34 student experiments in total:

• Thermal equilibrium and temperature measurement (4 experiments)

• Thermal expansion (6 experiments)

• Heat transfer (6 experiments)

• Thermal energy (8 experiments)

• Change of state (7 experiments)

• Solutions (3 experiments)

- Benefits:

• Complete equipment set: simple execution of the experiments

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Experimenting literature for pupils and teachers available: minimal preparation time

• Matched with international curriculum: all topics are covered

• Easy teaching and efficient learning by using the interactive experimentation software interTESS

• Equipment and technical data:

• The equipment set consists of all necessary components for the experiments

• Robust, stackable storage box with a foam insert fitting to the contained equipment

- Necessary accessories:

• TESS advanced Heat 2 necessary accessories for 1 group (13457-88)

• TESS advanced Heat 2 consumables for 10 groups (13458-88)

• TESS advanced Physics Baisc Set Heat 1 (15274-88)

- Optional accessories:

• TESS advanced Physics manual Heat (01160-02)

• interTESS DVD, complete version with all experiments in physics, chemistry, biology and applied sciences (01100-00)

• interTESS DVD Physics, Heat only (01052-00)

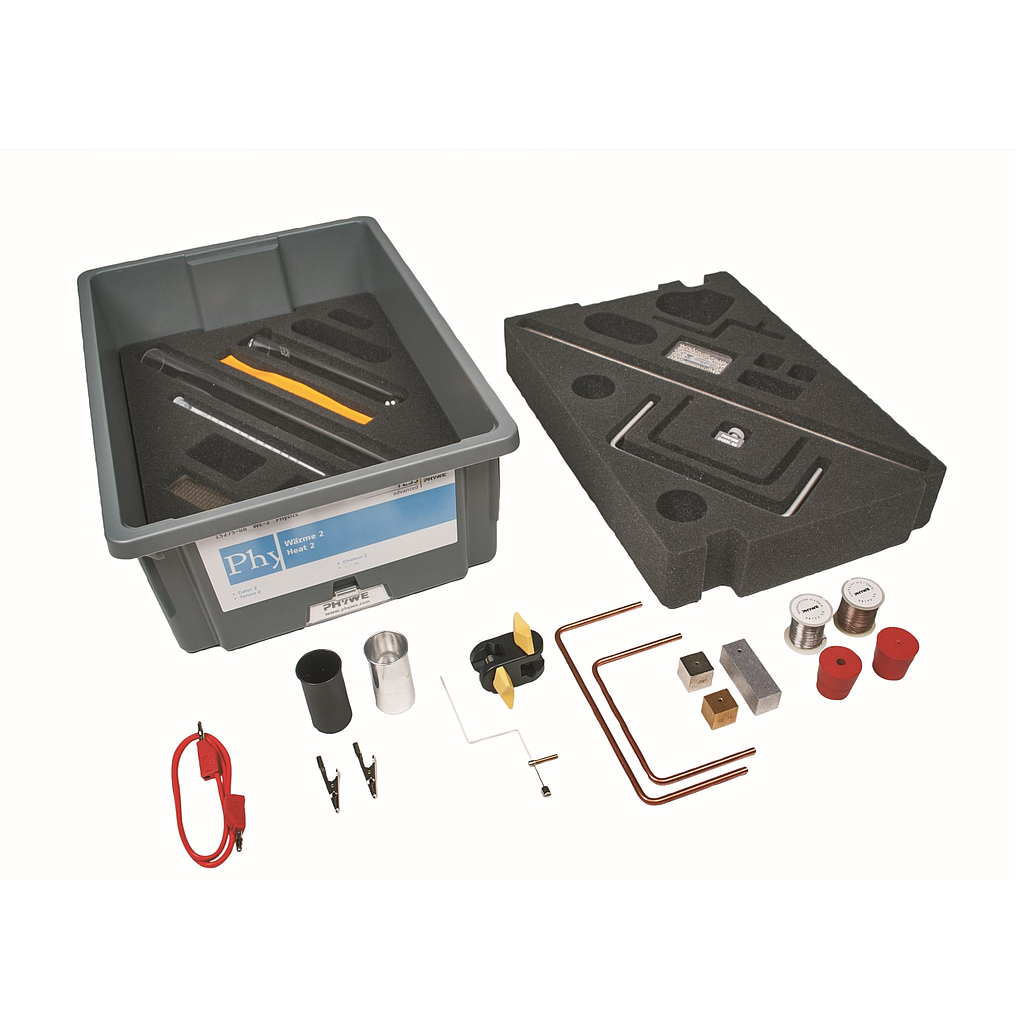

- Scope of delivery:

• Boss head: 02043-00, 1

• Steel pellets, d = 2 mm, 120 g: 03990-00, 1

• Collar for linear expansion: 04231-55, 1

• Brass tube: 04234-11, 1

• Iron tube: 04234-12, 1

• Aluminium tube: 04234-13, 1

• Rotating shaft with pointer: 04236-01, 1

• Heat sensitive paper: 04260-00, 1

• Metal bodies, set of 3: 04406-00, 1

• Tube, plastic, d. 30mm, l. 500mm: 04446-00, 1

• Beaker, aluminum, polished: 05903-00, 1

• Beaker, black: 05904-00, 1

• Aluminium rod,U-shaped: 05910-00, 1

• Copper rod, U-shaped: 05910-01, 1

• Copper rod, U-shape,d 3mm,w.175mm: 05910-03, 1

• Copper rod, U-shape,d.5mm,w.120mm: 05910-04, 1

• Bimetal strip: 05913-00, 1

• Test tubes,160x16mm,DURAN, 100pcs | Length: 200 mm: 36304-01, 1

• Rubber stopper, without hole | diameter: 26 mm: 39258-00, 1

• Rubber stopper 26/32, 1 hole 7 mm: 39258-01, 1

• Connecting cord, 32 A, 500 mm, red | Length: 500 mm: 07361-01, 1

• Lab thermometer,-10..+50C: 38055-00, 1

• Constantan wire, 4 Ohm/m, d = 0.4 mm, l = 50 m: 06102-00, 1

• Iron wire, d = 0.5 mm, l = 50 m: 06105-00, 1

• TESS box, plastics, high, 305 x 425 x 150 mm: 15200-01, 1

• Lid for TESS box, plastic: 15205-01, 1
