PHYWE 15264-88D ນັກສຶກສາຊຸດໄຟຟ້າ / ເອເລັກໂຕຣນິກ 1 ກັບ Building Blocksdigital (grades 7-10)

- Function and Applications:

Basic set allowing the performance of 28 experiments about the following topics:

• Electric Circuits (8 Experiments)

• Electrical Resistance (8 Experiments)

• Electrical Work and Power (1 Experiment)

• Tranformation of Energy (1 Experiment)

• Electrochemistry (6 Experiments)

• Safe Working with Electrical Energy (2 Experiments)

• Sensors (2 Experiments)

In x experiments, you can also use the Cobra SMARTsense Voltage and Current sensors in combination with tablets (iOS and Android) and smartphones (Android) instead of the classic measuring device. In addition, digtial data acquisition provides further didactic added value in experiments.

- Benefits:

• The ideal combination of classic experiments (practical competence) and digital data acquisition (media competence)

• Individual teaching structure possible: you can decide to chose the measuring instrument you want (classic or digital)

• Future-proof: Prepare the transition to the digital school today

• Perfectly matched to digital science lessons with tablets and smartphones

• Faster and higher learning success: The use of digital devices increases the identification and thus increases the motivation of the students

• No additional cable connections between the different parts required - clearer and faster setup

• Secure contact through puzzle-like components

• Gold plated, corrosion resistant contacts

• Double learning success: Electrical circuit diagram visible on the top and right components on the underside

- Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments

• Robust, stackable storage box with a foam insert fitting to the contained equipment

• Cobra SMARTsense Voltage: Measuring range: +/- 30 V, resolution: 0.02 V, sampling rate: 800 Hz

• Cobra SMARTsense Current: Measuring range: +/- 1 A, resolution: 0.5 mA, sampling rate: 800 Hz

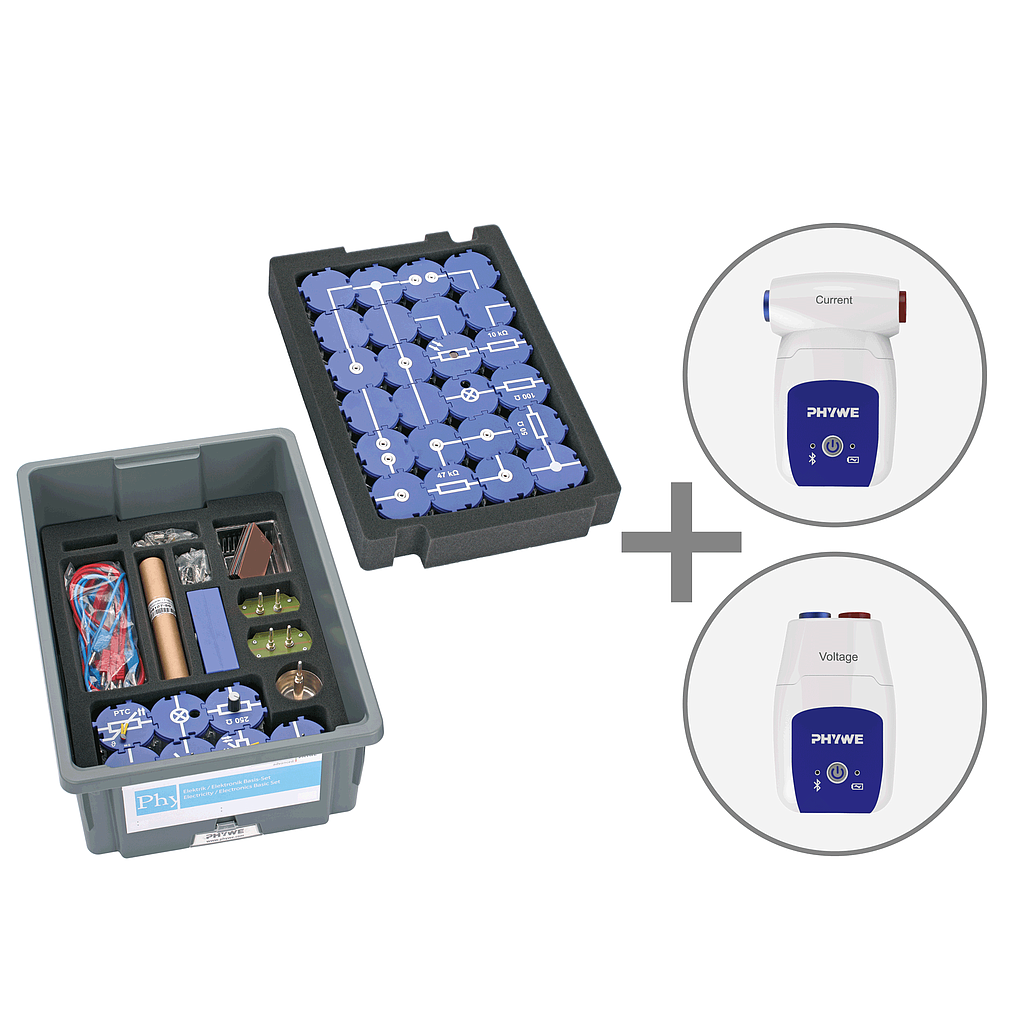

Scope of delivery:

• Student set Electricity / Electronics 1 with Building Blocks, TESS advanced Physics: 25264-88, 1

• Cobra SMARTsense - Voltage, ± 30 V (Bluetooth + USB): 12901-01, 1

• Cobra SMARTsense - Current, ± 1 A (Bluetooth + USB): 12902-01, 1

- Necessary accessories:

• Student set Electrics /Electronics 1, necessary accessories for 1 group, TESS advanced Physics: 13470-88

• Student set Electrics / Electronics 1, consumables for 10 groups, TESS advanced Physics: 13471-88

- Recommended accessories:

• USB quick charger with 8 USB ports: 07934-99
