PHYWE 13926-99 ພື້ນຖານຊຸດ Ultrasonic Doppler Technique II

- Function and Applications:

Kit containing instrument and accessories for general ultrasonic sonography experiments. The software displays the measured data from the ultrasonic Doppler apparatus, basic instrument of this kit, in realtime on the computer screen. Modular and extendable with accessory kits for experimentations in the fields of hydraulics and medical diagnostics.

- Benefits:

• This kit forms a very didactic experimentation system beginning from the basics of sonography and can with accessory kits be extended for the use in specific applications as hydraulics and medical diagnostics (only for training purposes!)

• An experimentation manual is included

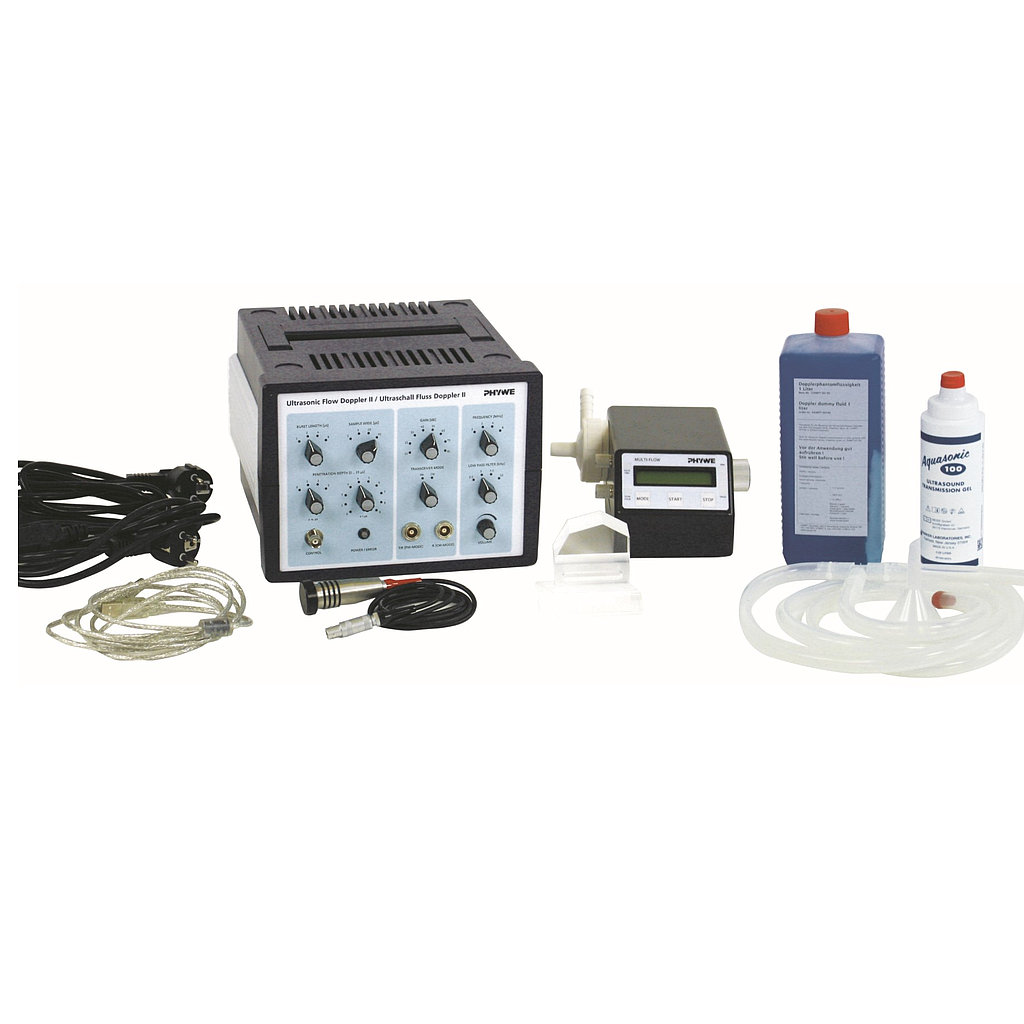

- Equipment and technical data:

• 1 x ultrasonic pulse Doppler apparatus

• 1 x centrifugal pump

• 1 x ultrasonic gel

• 1 x liquid for sonography (1 l)

• 1 x ultrasonic probe 2 MHz

• 1 x Doppler prisma 3/8

• 1 x set of flexible tubes

- Ultrasonic pulse Doppler apparatus:

• Frequency: 1, 2, 4 MHz

• Amplification: 10 - 40 dB

• Transmitter Power: Low (2µs-Burst), High (4µs-Burst)

• Sample Volume: Small (2µs receiver gate), Large (full receiver gate, ca. 32µs)

• Visualisation: LED-bar, acoustical signal volume controlled

• PC connection: USB

• Dimensions: 230 x 236 x 168 mm

• Main voltage: 90-230 V, 50/ 60 Hz

• Power of electricity: 27 VA
