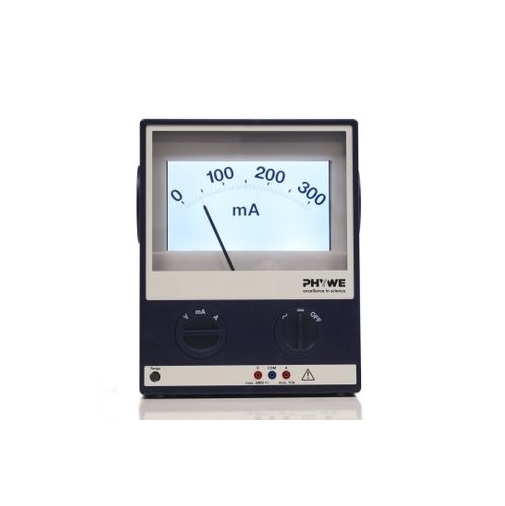

PHYWE 13830-00 Demo Multimeter (1 V~300 V, 1 mA~10 A, 10 MΩ)
Function and Applications
- The universal demonstration measurement device for measurements of current and voltage. Battery powered electronic analogue measuring instrument with measuring amplifier and 8 selectable scales for 33 measuring ranges. All values can be displayed as digital value.
Benefits
- The universal demo measuring device for electricity experiments
- Analogue and digital multimeter in one device
Display of current and voltage
- 12 V scale matching the supply voltage of many common experiments
33 measuring ranges with fast switching scales by the press of a button
- High contrast, large illuminated screen readable throughout the room
- Electronic overload protection for all measuring ranges
- Continuous operation of up to 10 h due to high-capacity battery
- Power-saving stand-by mode after approx. 60 min
- Extra-safe for operation by students
- Future-proof thanks to firmware update support
Equipment and Technical Data
- 8 scales for 33 measuring ranges
- Direct/alternating voltage: 1 V…300 V
- Direct/alternating current: 1 mA…10 A
- Input impedance: 10 MΩ
- Accuracy: ±1,5 % of upper range value
- Frequency range: 2 Hz…100 kHz
- Battery run-time: approx. 10 h
- Display: 10", illuminated
- Digit size: digital display: 2.7 cm, analog display: 1.5 cm
- Shock-resistant plastic case with retractable handle
- Display of measurement values via step motor driven needle
- USB interface for firmware updates
- Extensive overload protection
- Including power supply
