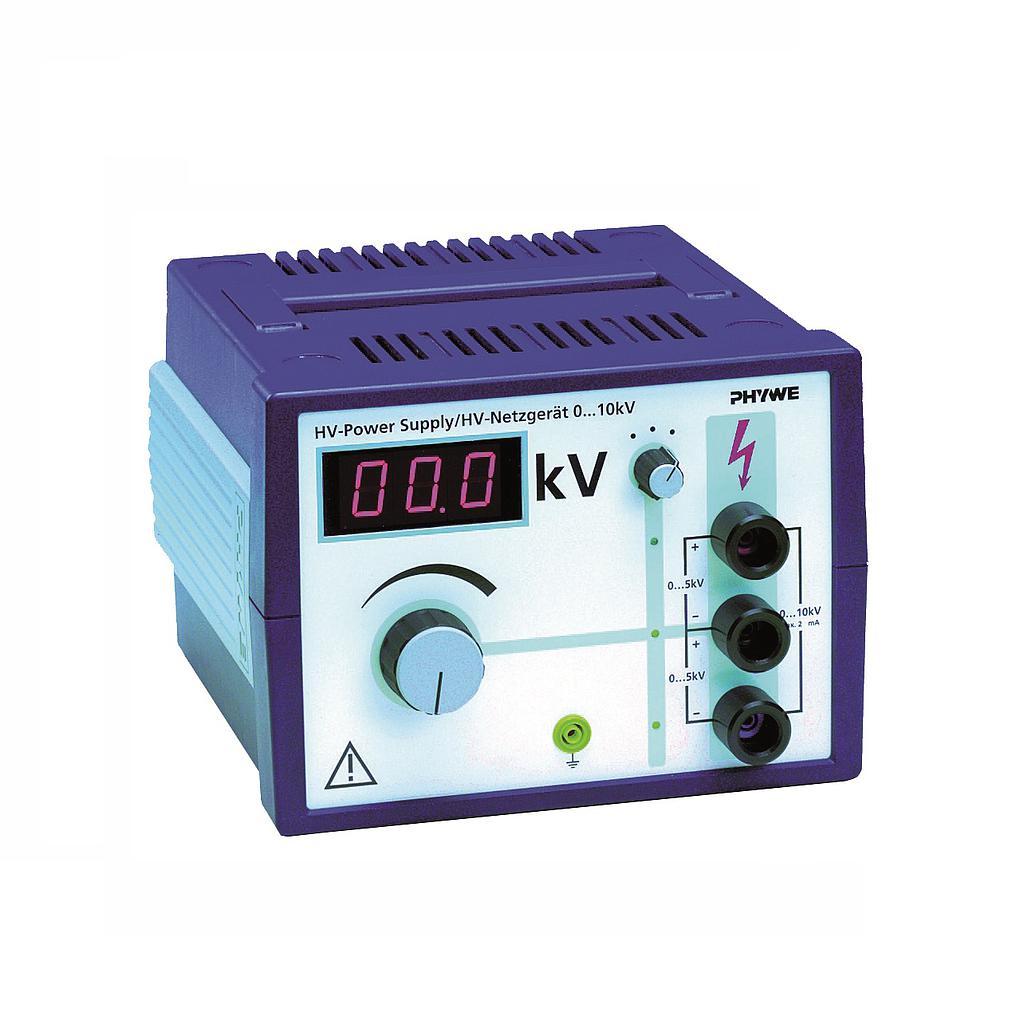

PHYWE 13673-93 ການສະຫນອງພະລັງງານແຮງດັນສູງ (10 kV DC, 2 mA)
Function and Applications
For electrostatic experiments and for operation of spectral and gas discharge tubes.
Equipment and Technical Data
It supplies 3 continuously variable DC voltages isolated from earth and ground.
Two of the voltages are connected in series 0-5 kV DC = total of 0 -10 kV DC.
Selectable positive and negative polarity.
3-figure LED display.
Outputs short-circuit proof.
Special safety sockets.
Modern plastic housing, impact resistant, easy to service, light stackable with retractable carrying handle and stand.
Internal resistance: approx. 5 MOhm.
Ripple: < 6 %.
Supply voltage: 230 V.
Short circuit current: max. 2 mA.
Housing dimensions (mm): 230 x 236 x 168.
Recommended accessories:
- Connecting cord, 30 kV, 500 mm- 07366-00
- Connecting cord, 30 kV, 1000 mm- 07367-00
