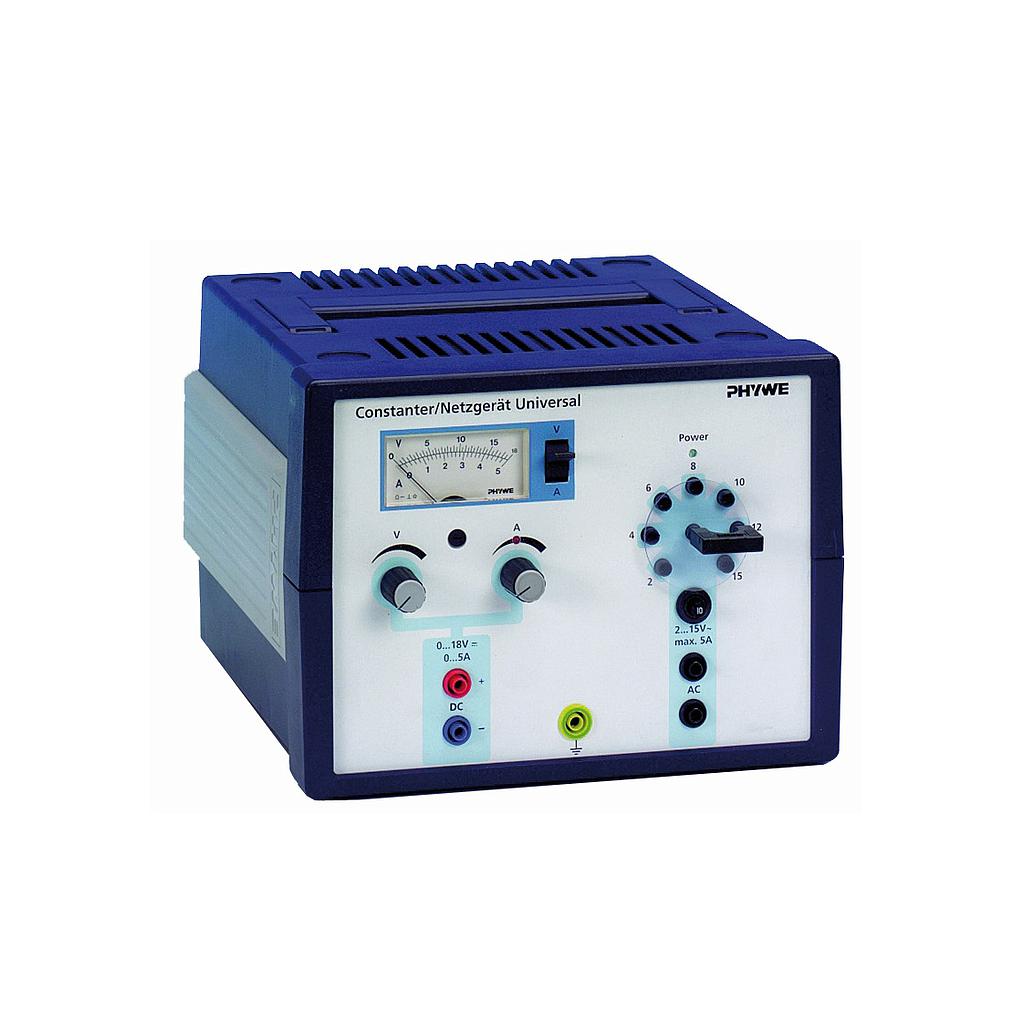

PHYWE 13503-93 Universal Power Supply (DC: 18V, 5A; AC: 15V, 5A)
Function and Applications:
Versatile heavy duty power supply which can also be used as a constant current supply in schools, laboratories or lab courses.
Equipment and technical data
Direct current source: Stabilised, regulated output direct voltage, continuously adjustable from 0...18 V
Adjustable current limit between 0...5 A
LED for constant current operation
Permantely short-circuit proof & protected against exterior voltages
Alternative voltage output:
Multitap transformer 2...15 V, outputs galvanically separated from main grid
Full load capacity (5 A), even if direct current is supplied simultaneously
Short-circuit protection through overcurrent circuit breaker
All output voltages available at 4 mm safety plug sockets.
Analog display instrument with measuring ranges of 0...18 V and 0..5 A and a commutating switch for voltage/current measurement.
