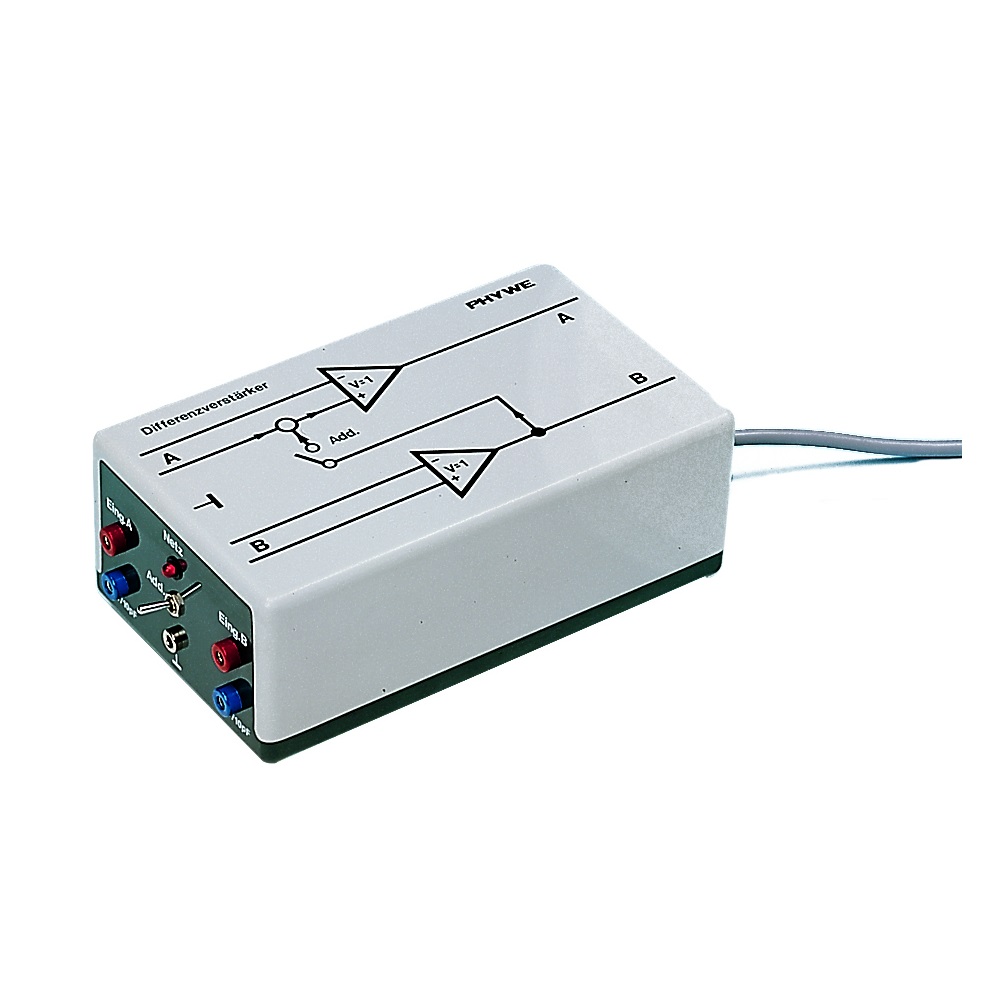

PHYWE 11444-93 ຕົວຂະຫຍາຍສຽງຄວາມແຕກຕ່າງ (0.15~ 0.100kHz)
Function and Applications
- For the simultaneous potential-free measurement of two voltages when connected to the inputs of a two channel oscilloscope.
Benefits
- The high resistance difference inputs can be connected to any point of a circuit, without influencing the electrical behaviour of the circuit.
- Allows demonstration of the phase shift between voltage and current in alternating current circuits.
- Enables characteristics to be presented in the xy operation mode of an oscilloscope.
- Input voltages can be added.
Equipment and technical data
- Amplification 1 ± 3%
- Frequency range for UE 20 Vss 0.15 kHz, for UE 6 Vss 0.70 kHz, for UE 2 Vss 0.100 kHz
- Inputs A and B: connection 4-mm-pair of sockets
- Impedance 1 M /10 pF
- Overload capacity mains voltage proof
- Outputs A and B: connection BNC-sockets;
- Internal resistance 100 Ohm
- External resistance 10 kOhm
- Overload capacity short-circuit proof
- Mains supply 230 V, 50.60 Hz
- Casing dimensions (mm) 190×110×60
