PHYWE 08735-00 Si-Photodetector ກັບເຄື່ອງຂະຫຍາຍສຽງ
- Function and Applications:
Silicon diode with high signal-to-noise ratio for photometric measurements where there is a high degree of interference.
- Equipment and Technical Data:

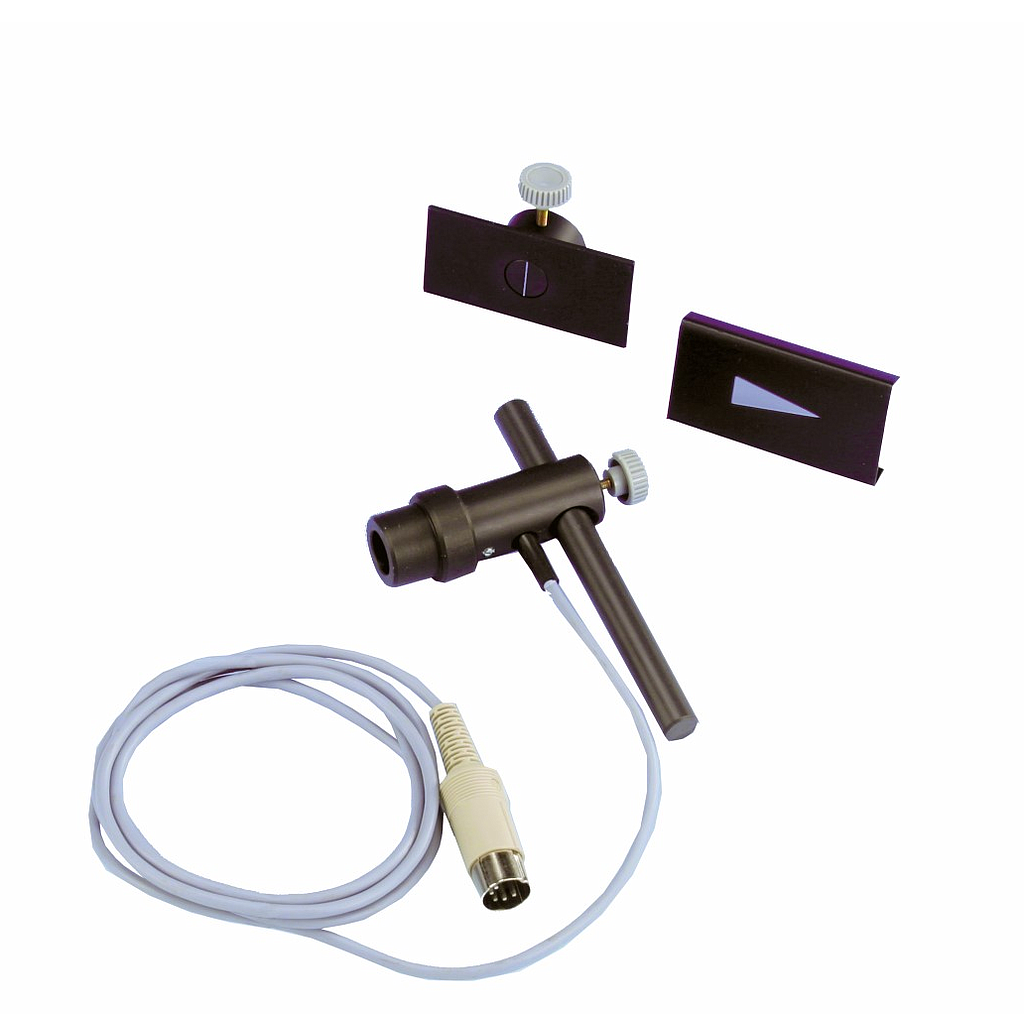

Movable holder for diode on round mounting rod with lens for incoming light
Removable slot filter
1.5/m lead with diode plug for connecting to the required control unit
Spectral range: 390 nm-1150 nm
Maximum sensitivity: 900 nm
Voltage when dark: 0.75 mV
Sensitivity: (900 nm) 860 mV/µW/cm²
Band width: 65 kHz
Slot filter: d= 0.3 mm
Mounting rod: l=110 mm, diam.=10 mm
- Needed in addition:
08735-99 Cotrol Unit for Si-Photodetector
- Scope of delivery:
Support rod, stainless steel, different lenghts | Length: 250 mm: 02031-00, 1
