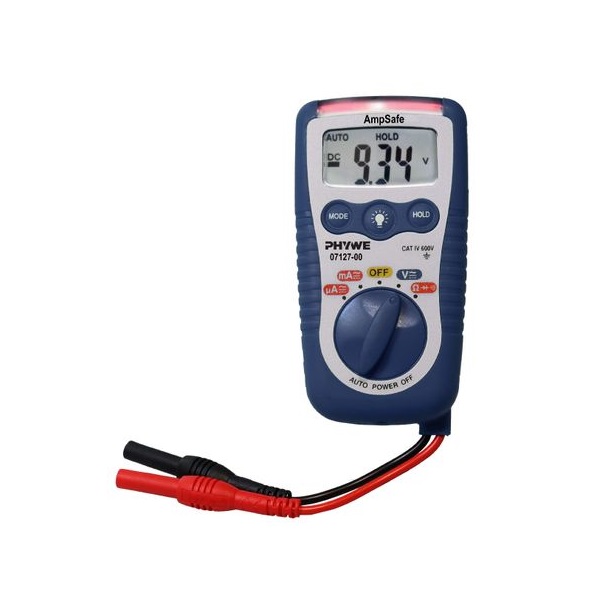

PHYWE 07127-00 Multimeter ນັກສຶກສາດິຈິຕອນ (600VAC/DC, 200mA AC/DC, 20 MΩ)
Function and Applications
- Multimeter for measurement of AC/DC voltage, current and resistance.
Benefits
- Virtually indestructible due to electronic overload protection (electronic relay) - never replace a fuse again!
- Use your 4 mm standard cords, no adapter required
- Includes a pair of test probes
- Measures AC/DC voltages, current and resistance
- Ergonomically designed for student use
- Safe, with integrated shock-absorbing frame
- Contactless AC voltage detection via indicator light
- Continuity tester
- Auto Power-off
- Built-in flashlight (LED)
Equipment and Technical Data
- Measurement ranges:
DC voltage: 0...600 V
AC voltage: 0...600 V
DC current: 0...200 mA
AC current: 0...200 mA
Resistance: 0...20 MOhm
Supply voltage:2 × 1,5 V AAA batteries
Dimensions H × W × D (mm): 120 × 55 × 40
Mass: 160 g
4 mm safety sockets- 12 mm
3 1/2-digit LCD
Maximum display value: 2000, Autorange
Data-hold function
Compliant to safety rules: IEC-1010-1, CAT III 600 V
Accessories included:
2 × batteries AAA
1 pair test probes
manual
