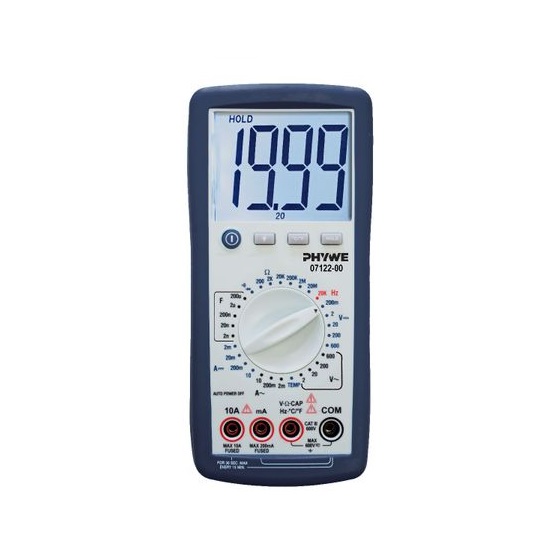

PHYWE 07122-00 Digital Multimeter (600VAC/DC, 10AAC/DC, 20MΩ, 200µF, 20kHz, −20~760°C)
Function and Applications
Hand-held instrument for measurement of voltages, currents, resistances,capacitance, frequency and temperature.
Benefits
With continuity check function and diode test, auto power off,display illumination and measurement value hold function.
Equipment and Technical Data
Overload protection by diodes and fine fuses for 0.2 A and 20 A.
Plastic housing with rubber frame and 4 mm safety sockets.
Thermocouple socket type K.
3 1/2-digit LC-display: 38 mm
Voltage:0...0.2 / 2 / 20 / 200 / 600 V DC; 0...2 / 20 / 200 / 600 V AC
Current AC/DC: 0...0.2 / 2 / 20 / 200 mA; 0...10 A
Resistance: 0...200 Ohm; 0...2 / 20 / 200 kOhm; 0...2 / 20 MOhm
Temperature: -20...760°C
Frequency: 0...20 kHz
Capacitance: 0...2 / 20 / 200 nF; 0...2 / 200 µF
Impedance: 10 MOhm
Dimensions (mm): 92 × 195 × 38
Weight: 380 g
Including test leads, 9 V batteryblock, NiCr-Ni thermocouple type K and manual
