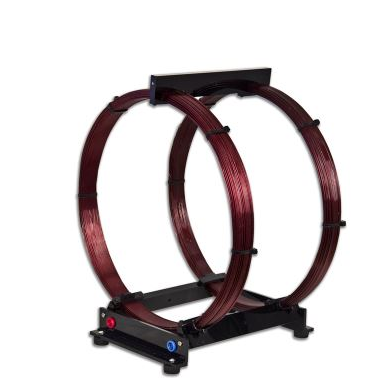

PHYWE 06960-05 Helmholtz Coils

- Function and Applications:

Helmholtz coils, one pair to generate a homogeneous magnetic field. Especially with narrowbeam tube for e/m determination.

- Equipment and technical data:

• Two identical coils each on standbase

• connections 4 mm safety sockets

• Coil diameter: 300 mm

• Number of windings: each coil 124

• Coil resistance: 1,2 Ohm

• Max. current per coil: 5 A

• Max. flux density (5 A): 3.7 mT
