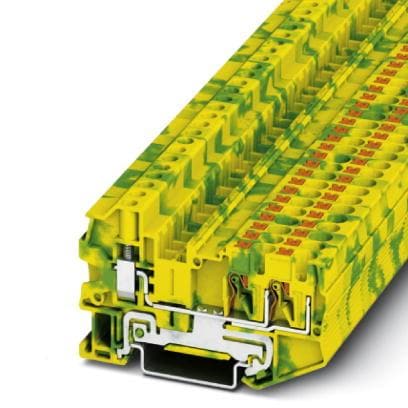

PHOENIX CONTACT 3211862 ບລັອກຕ່າງຕໍ່ພື້ນທີ່ມີຮູບແບບມົດູເລ PTU 4-TWIN PE 24-15AWG 600V 30A

Width: 6.2 mm

Height: 42.8 mm, 50.3 mm

Length: 69.3 mm

Unit Weight: 15.190 g

REACH - SVHC: Details

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Number of Rows: 1 Row

Voltage Rating: 800 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 24 AWG

Wire Gauge Range: 24 AWG to 12 AWG

Connection Method: Push-In

Flammability Rating: UL 94 V-0

Number of Positions: 3 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
