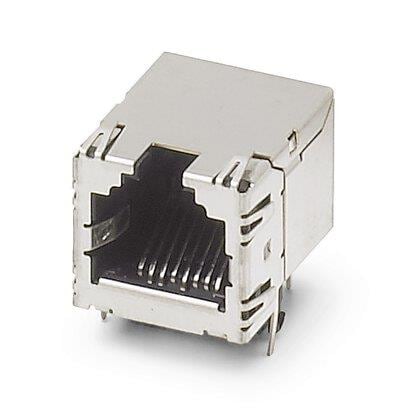

PHOENIX CONTACT 1653087 Modular VS-08-BU-RJ45-6/LH-1 CAT6 RJ45 FEM/RA PI

Color: Black

Gender: Jack (Female)

IP Rating: IP20

Shielding: Shielded, EMI Fingers

USOC Codes: RJ45

Application: 1G/10G Base-T

Unit Weight: 7.160 g

Configuration: 1x1

Tab Direction: Tab Up

Current Rating: 1 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 72 VDC

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Copper

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 6

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 25 C

Number of Positions / Contacts per Port: 8P8C
