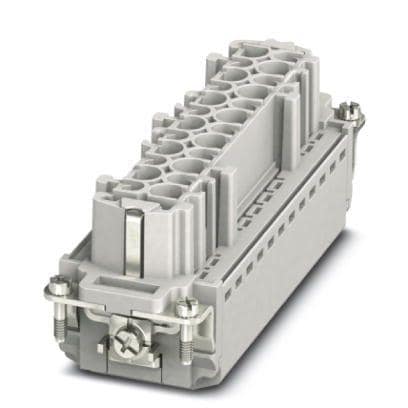

PHOENIX CONTACT 1407745 Inserts HC-HV10-I-PT-F

Unit Weight: 106.200 g

Current Rating: 16 A

Housing Gender: Female

Mounting Style: Panel

Voltage Rating: 500 V, 830 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 26 AWG

Contact Plating: Silver

Contact Material: Copper Alloy

Housing Material: Polyamide (PA)

Wire Gauge Range: 26 AWG to 14 AWG

Termination Style: Push-In

Housing / Hood Size: B24

Number of Positions: 12 Position + PE

Insert / Contact Gender: Female

Number of Power Positions: 10 Position

Number of Signal Positions: 2 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
