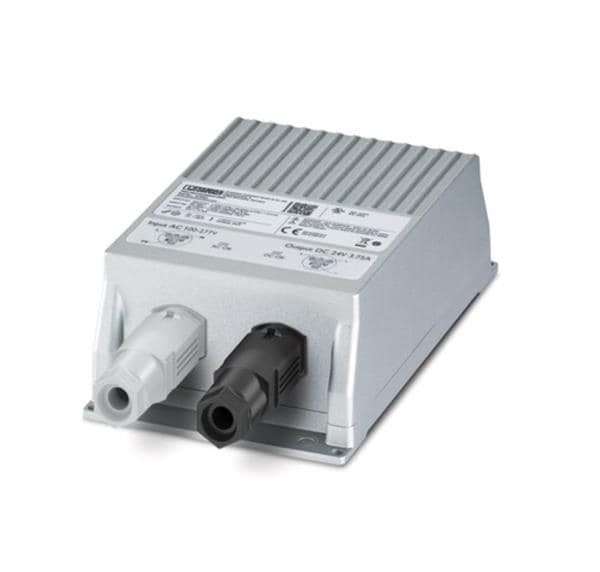

PHOENIX CONTACT 1278301 ເຄື່ອງສະໜອງພະລັງງານແບບສະວິດປະຖົມພູມ TRIO-PS67/1AC/24DC/3.75/IPD

Width: 100 mm (3.937 in)

Height: 53 mm (2.087 in)

Length: 222 mm (8.74 in)

Industry: Medical

Approvals: NEC Class 2, UL/CUL

IP Rating: IP67

Efficiency: 94 %

Output Power: 90 W

REACH - SVHC: Details

Input Voltage: 100 VAC to 277 VAC, 110 VDC to 250 VDC

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Not Regulated

Isolation Voltage: 3 kVAC, 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 3.75 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
