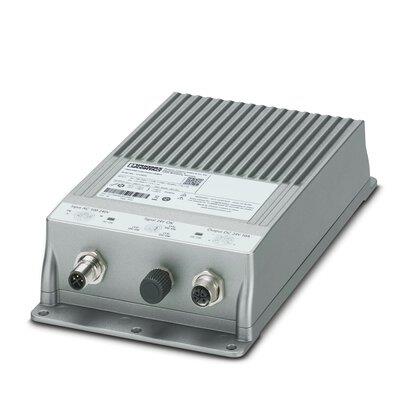

PHOENIX CONTACT 1111634 ເຊັດຊິ້ນສະພາບ TRIO-PS67/1AC/24DC/10/M12

Width: 136 mm (5.354 in)

Height: 53 mm (2.087 in)

Length: 240 mm (9.449 in)

Industry: Industrial

Approvals: cUL/UL-61010-1

IP Rating: IP67

Dimensions: 240 mm x 136 mm x 53 mm

Efficiency: 93 %

Output Power: 360 W

REACH - SVHC: Details

Input Voltage: 100 VAC to 240 VAC, 110 VDC to 250 VDC

Mounting Style: Chassis

Input Frequency: 60 Hz

Load Regulation: Not Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
