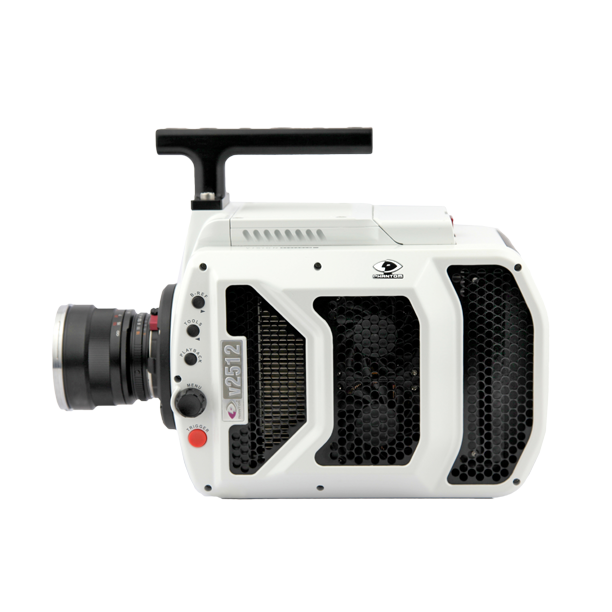

PHANTOM V2512 ກ້ອງຖ່າຍຮູບຄວາມໄວສູງສຸດ (25700FPS, Mono, 288GB, CineMag)
ຜູ້ຜະລິດ: PHANTOM Model: V2512 P/N: VRI-V2512-288G-MAG-M ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
Imaging:
Sensor type: CMOS
Maximum resolution: 1280x800
Pixel size: 28 µm
Bit depth: 12-bit
Sensor size: 35.8 mmx22.4 mm
ISO daylight: 32,000D
ISO tungsten: 100,000T
Exposure index: 32,000-160,000 (mono)
Frame rates & exposure:
Frame rate: 25,700 FPS at max resolution 1280x800 pixels
Maximum FPS: 663,280 at 128x16; 1,000,000 at 256x32 with FAST option
Minimum FPS: 100
CAR increments: 640x8
Minimum exposure: 1 µs standard, 265 ns with FAST option (export controlled)
Exposure feature: Auto-Exposure
Memory:
Memory: 288 GB high-speed internal RAM
Record times: 7.6 seconds at maximum frame rate, 12 bits, 1280x800 resolution and into maximum internal memory
Non-valatile media: Phantom CineMag IV and V optional. Supports auto-save, direct record and video playback
Media transfer rate: 2TB CineMag V=900 Mpx/sec
8TB CineMag V=1.4 Gpx/sec
Power:
AC power: 100-240VAC, 280W
Voltage range: 20-28V
Power consumption: max 255W
Ships standard with:
Power supply
Ethernet cable
Capture cable
Phantom PCC software
Getting Started Guide
