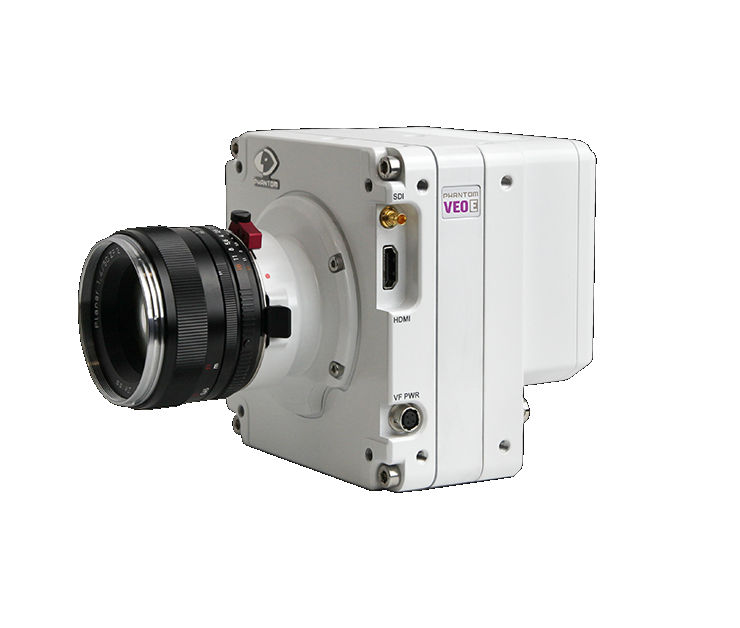

PHANTOM VEO E-310L ກ້ອງຖ່າຍຮູບຄວາມໄວສູງ (1280 x 800pixel; Color 36Gb 12-Bit, 1Us)
ຜູ້ຜະລິດ: PHANTOM Model: VEO E-310L P/N: VRI-VEO-E310L-36G-C - ຕິດຕໍ່ພົວພັນ
Throughput/Speed
- 3 Gpx/second
- Max speed at full resolution of 1280 x 800 is 3200 fps
- Max speed at reduced resolution of 64 x 8 is 650000 fps
- Max speed of 310L-E225 is 225000 fps
- Minimum frame rate of 24 fps
Sensor Specifications
- CMOS sensor
- 1280 x 800 pixels
- 20 µm pixel size
- 25.6 mm x 16.0 mm
- 12-bit depth
- TE cooled
- CAR in 64 x 8 increments
- EMVA 1288 measurements at 532nm
Quantum Efficiency: 33.9% mono; 29.5% color
Max. SNR: 44.1 dB
AST (p) 99.4 mono; 115.9 color
Saturation Capacity (e-): 25918 mono; 27880 color
Temporal Dark Noise: 33.1 e-
Dynamic Range: 57.7 dB
Exposure
- 1 µs minimum exposure
- Global electronic shutter
- Exposure Index (E.I.) for controlling apparent ISO
- Extreme Dynamic Range (EDR)
- Auto Exposure
- Shutter Off mode for PIV
Memory
- 18 GB, 36 GB high-speed internal RAM
Power
- 100 - 240 VAC, 16-32 VDC via primary power input.
- 80 Watt 24V power supply included
For more details, please see Datasheet
