PHANTOM v2640 ກ້ອງຖ່າຍຮູບຄວາມໄວສູງສຸດ (6,600 - 12,500 fps)

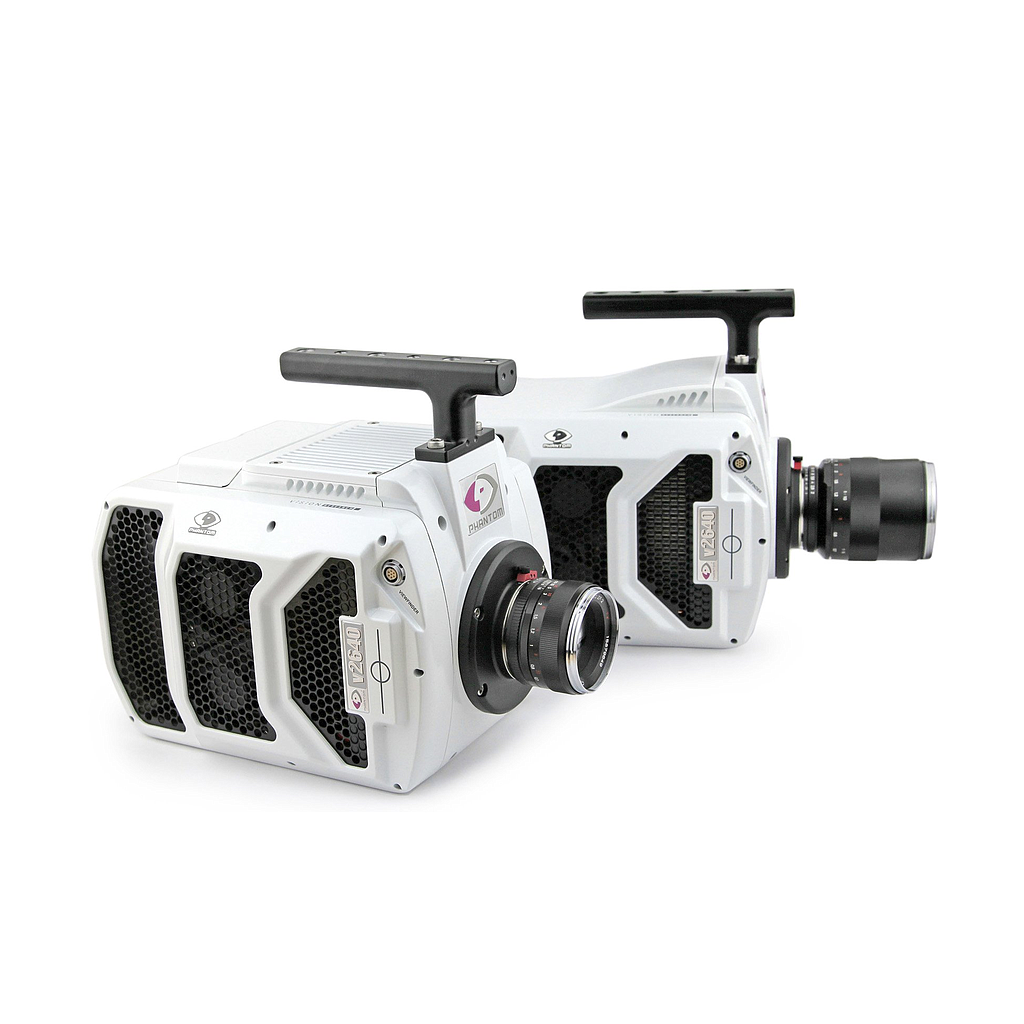

The Phantom v2640 is the fastest 4Mpx camera on the market, achieving 6,600 fps at full resolution of 2048x1952
Throughput: 26 Gpx/second
It has excellent image quality, with dynamic range of 64.1dB and noise of only 7.2e- for clear, detailed images.
Standard Mode: ISO 16,000D (Monochrome), 3,200D (Color)
Exposure: 1 µs minimum exposure standard, 499ns minimum exposure in Standard mode and 142ns minimum exposure in HS mode with FAST option (export controlled)
The v2640 has up to 5 operating modes for maximum flexibility: Standard, High Speed (HS), High Speed Bright Field, Standard Binned and High Speed Binned. The binned mode on a color camera produces a monochrome color.
Correlated Double Sampling (CDS) in standard mode provides the cleanest images possible for images with dark regions.
Memory: 72 GB, 144 GB, 288 GB high-speed internal RAM
10Gb Ethernet standard
CineMag IV and V for non-volatile storage (up to 8TB)
Datasheet
CineMag Compatible Mechanical Drawing
Non-CineMag Compatible Mechanical Drawing
Spectral Response Curve
UHS Series Manual
Videos
v2640 and v2512 Comparison
Electricity arcs captured with a v2640
Phantom v2640 High-speed Camera - 2019 End of Summer Fun
Phantom v2640 High-Speed Camera - Drop Testing at 1000 fps.
Red Balloon Water Suspension
