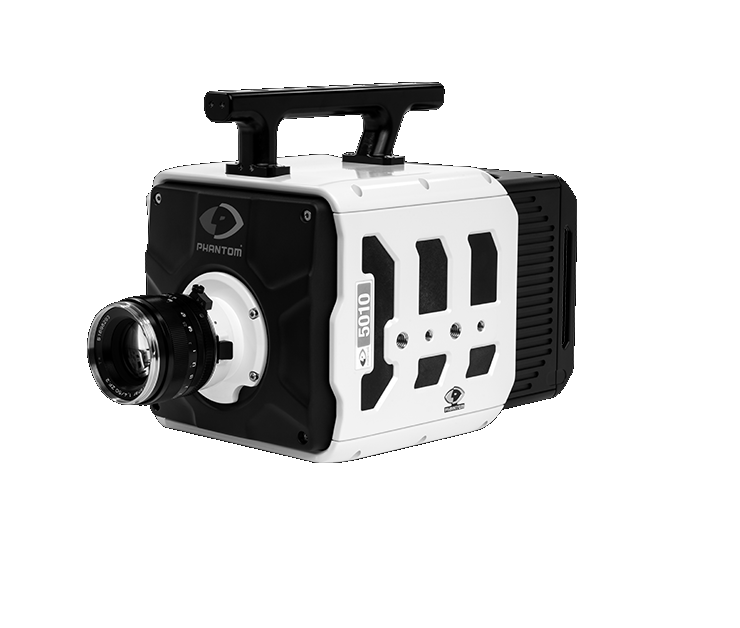

PHANTOM TMX 5010 ກ້ອງຖ່າຍຮູບຄວາມໄວສູງ (1280 x 800pixel; Color, F-Mount, 512Gb, 12-Bit, 1Us)

Throughput/Speed

- 50 Gpx/second

- The minimum frame rate is 100 fps

- Standard Mode Max Speeds:

     1280 x 800 is 50725 fps. (full resolution)

     1280 x 64 is 583330 fps

     1280 x 32 – 1.16M fps (FAST option only)

- Binned Mode Max Speeds:

     640 x 384 in the Binned mode is 205880 fps (full resolution)

     640 x 128 is 583330 fps

     640 x 64 – 1.16M fps (FAST option only)

Sensor Specifications

- CMOS Back Side Illuminated (BSI) Sensor

- 1280 x 800 pixels

- 18.5 µm pixel size, 37 µm with binning enabled

- 23.7 mm x 14.8 mm; 27.94mm diagonal

- 12-bit depth

- CAR in 256 x 32 increments, 128 x 64 in Binned modes

- EMVA 1288 measurements at 532nm

- Standard Mode:

     Quantum Efficiency: 77.6% mono; 64.9% color

     Max. SNR: 39.4 dB

     AST (p) 31.8 mono; 44.4 color

     Saturation Capacity (e-): 8736 mono; 9720 color

     Temporal Dark Noise: 24.18 e-

     Dynamic Range: 51.0 dB

- Binned Mode:

    Quantum Efficiency: 72.0%

     Max. SNR: 45.2 dB

     AST (p) 98.9

     Saturation Capacity (e-): 33,184

     Temporal Dark Noise: 70.69 e-

     Dynamic Range: 53.4 dB

- Binned Mode is Mono Output Only

Exposure

- 1 µs minimum exposure standard, 95 ns minimum exposure with FAST option (export controlled)

- Global electronic shutter

- Extreme Dynamic Range (EDR)

- Auto Exposure

- Exposure Index (E.I.) for controlling apparent ISO

- Shutter Off mode for PIV

Memory

- 128GB, 256GB, 512GB high-speed internal RAM.

- Up to 511 memory partitions.

- CineMag V for non-volatile storage (2TB,  8TB)

Power

- 100 – 240 VAC, 400 Watt power supply included

- 20 – 28 VDC secondary power input on the camera back panel
