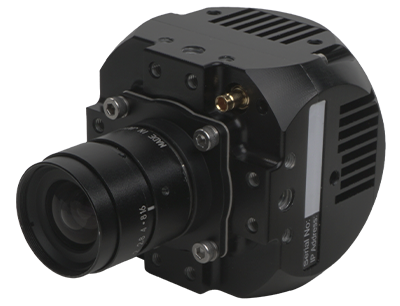

PHANTOM C980J ກ້ອງຖ່າຍຮູບຄວາມໄວສູງ (3840 × 2160)
IMAGE & SENSITIVITY
Sensor Type: Proprietary BSI CDS CMOS designed by Forza Silicon, Global Shutter
Maximum Resolution: 3840 × 2160
CAR Increments: 1920 × 24
Pixel Size: 5 µm
Sensor Size (Diagonal): 22 mm (4/3")
Bit Depth: 12-bit
EMVA 1288 Measurements (at 533 nm)
Quantum Efficiency (QExFF): 57.7 mono / 63.1 color
Max. SNR (dB): 37.3
Absolute Sensitivity Threshold (e-): 4.69 mono / 4.58 color
Saturation Capacity (e-): 5431 mono / 5424 color
Temporal Dark Noise (e-): 4.14
Dynamic Range (dB): 61.27
MEMORY & STORAGE
RAM Buffer: 28 GB
Capture Duration: 1.9 seconds at max resolution and max frame rate
Multi-Cine: Up to 63 Partitions
Non-Volatile Media: 256 GB internal SD flash memory
Media Transfer Rates: 60 MB/s from RAM to internal SD flash
FRAME RATES & EXPOSURE
Top FPS at Max Resolution: 1180
Maximum FPS: 50,820
Minimum FPS: 100
Frame Timer Clock: 68 MHz
Minimum Exposure: 3 µs
PIV Features: N/A
Exposure Features: Auto Exposure
MECHANICAL
Housing Variants: N/A
Size: 6.2 × 6.2 × 5.77 cm
Weight: 0.6 lb (0.27 kg)
JB3 Junction Box Size: 6.8 × 3.2 in (17.2 × 8.2 cm)
JB3 Junction Box Weight: 1.6 lbs (0.7 kg)
Lens Mounts: C-mount
Mounting Points: 1/4×20 and M4 mounting points on all sides
Internal Shutter: N/A
Cooling: Active cooling
