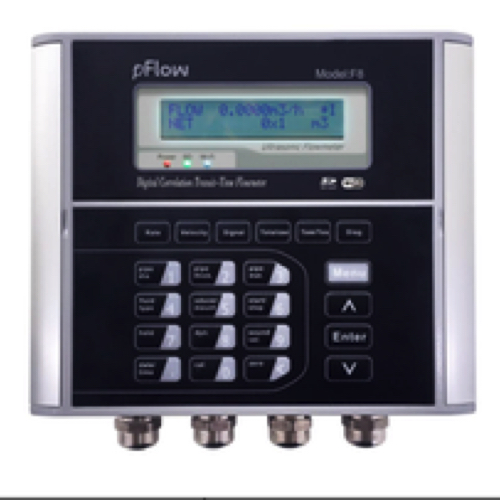

Pflow F8 Smart Billing Flowmeter Ultrasonic (±0.01m/s ~ ±12m/s)
Flow range: ±0.03ft/s ~ ±40ft/s (±0.01m/s ~ ±12m/s)
Accuracy: ±0.5% of measured value (for ±1.5ft/s~±40ft/s)
Pipe size: 1 in to 200 in (25mm to 5000mm)
Fluid: Water, Sea Water, Diesel Oil, Kerosene, Gasoline , Fuel Oil, Gasoline, Propane (-45℃), Alcohol, Butane (0℃) ℃Water (125℃), Other
Pipe material: Carbon Steel, PVC, Stainless Steel, Asbestos, Cast Iron, Aluminum, Ductile Iron, Fiber Glass-Epoxy, Copper, Other
Outputs:
Analog output: 4~20mA, max load 750Ω.
Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable)
Realy output: SPST, max 1Hz,(1A@125VAC or 2A@30VDC)
SD Card: Standard SD card
Max record:512days
Record time interval
Power supply: 90 to 245 VAC, 48 to 63 Hz. Or 10 to 36VDC
Communication: WIFI, RS232&RS485
Keypad: 22 keys with tactile action
Display: 40 character, 2 line (20X2) lattice alphanumeric, back lit LCD
Temperature:
Transmitter:14℉~122℉(-40℃~60℃)
Transducer:32℉~176℉(-40℃~80℃)
Humidity: Up to 99% RH,non-condensing
