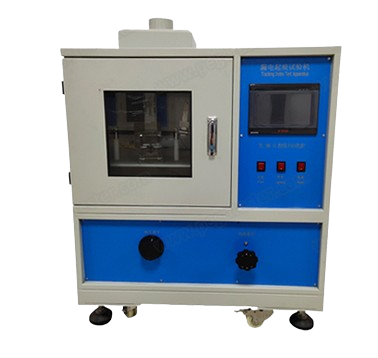

PEGO TI-1H ຕົວທົດສອບດັດຊະນິຍົມການຕິດຕາມ PTI ແລະ CTI (ປະເພດ PLC) (1.00±0.05N, PLC)

Control system: 7-inch color touch screen+PLC

Electrode material: platinum (Pt)   purity≥ 99%

Electrode size: (2mm±0.1mm)×(5mm±0.1mm)×(40mm±5mm), length≥12mm, angle of chisel-edged: 30°±2°

Electrode distance: 4.0mm±0.1mm, angle: 60°±5°

Electrode pressure: 1.00±0.05N

Electrode voltage: 100~600V

Height of the drops: 35mm±5mm adjustable

Size of drops: 20 drops: 0.380g~0.480g, 50 drops: 0.997g~1.147g

Interval of the drops: 30s±5s, 50 drops: 24.5min±2min

Test solutions resistance

Solution A: 0.1%NH4Cl, 3.95±0.05Ωm, solution B: 1.7±0.05Ωm

Number of drops: 0~9999 (presettable, record and display)

Test wind speed: 0.2m/s

Short circuit current drop: 1.0A±0.1A drop 10%

Leakage indicator: 0.50A±10% , 2.00s±10%

Standard: IEC60112, UL746A, ASTM D 3638-92, DIN 53480

Working studio: 0.5m3 , built-in exhaust fan, exhaust hole: Φ100mm

Accessories: Dripping system, glassware, block gauge, electrodes and etc.

Outer dimension: 800mm (W)*500mm (D)*970mm (H)

Working Power: 220V/50Hz, 1KVA

The tracking index test apparatus is designed according to IEC60112, UL746A, GB.T4207, GB4706.1 and TMD 3628-92. On the surface of the solid insulating material, a certain voltage is applied between the platinum electrodes (2 mm × 5 mm) , and drops the pollution liquid (0.1% NH4CL) with specified droplet volume in fixed height (35mm) for 30s to evaluate the resistance of the surface of solid insulating materials under the combined action of electric field and contaminated medium. And then its comparative tracking index (CTI) and proof tracking index (PTI) are determined. Tracking index test is mainly used in the industries of lighting appliance, low voltage appliance, household appliance, motor, electronic appliance, instrument and etc. It is a good tool for research department, production department and QC department.

The equipment is controlled by 7-inch color touch screen and PLC. The test apparatus is built-in air exhaust, the front panel is transparent for easy observation of the experimental process.

Proof Tracking Index (PTI): the voltage value of the material subjected to 50 drops of electrolyte without electrical tracking, the unit is volt.

Comparative Tracking Index (CTI): The highest voltage value at which the surface of the material can withstand 50 drops of electrolyte without forming electrical tracking, the unit is volt.

Test solutions: The preparation ratio is 1:1000, that is 0.1g of NH4CI with 100g (100ml) of distilled water
