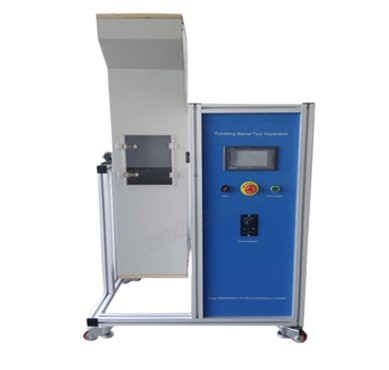

PEGO PG-TB31 ຖົງຫຼັກກວດສອບການຫຼິ້ນ (5R/min, 10 falls/min, 500mm/1000mm)
Control units: Button control+meter/touch screen
Test station: 1
Rotating speed: 5R/min
Rate of fall: 10 falls/min
Falling height: 500mm/1000mm
Number of falls
0-999999 (settable)
Complete the prescribed number of falls, the equipment will
auto stop
Configuration
1) Test surface: steel with thickness 3mm
2) Backed hardwood: plywood with thickness 15-20mm
3) Bevel: backed by 2 wedge-shaped chip-resistant rubber
with a hardness of 80±20IRHD as per ISO48
Sizes: Width: 220mm
The tumbling barrel is designed according to IEC60068-2-31 clause 5.3 / figure A.1, IEC60598-1 clause 4.13.5, IEC60884-1 clause 24.2 for repeat free fall test. The test is to check the mechanical strength of the electrical appliance like plugs and socket-outlets. The sample shall be placed in the tumbling barrel and subjected to prescribed number of falls.
