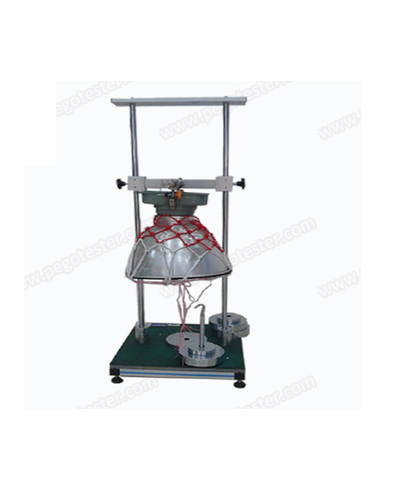

PEGO PG-SPD ອຸປະກອນທົດສອບການເປີດຕົວໄຟສະຫນາມ (800mm, 50KG)

Control mode

1). Manual control

2). Adjustable upper and down, maximum height: 800mm

Test station: 1

Test load: Load equal to 4 times weight of luminaire

Test weight: 50KG

Test time: 1 hour (user prepare the timer)

Column size: φ80mm*1500mm

Base plate

1). steel countertop: 800mm*800mm*10mm

2). Fangtong load-bearing bracket: 40mm*40mm

3). All-directions casters with brake

Fixture: Adjustable installation and tightening methods, can fit with most of suspended luminaire

Suspended Lateral arm: Equip with adjusting sliding sleeve and positioning pin, the height can be adjusted freely.

Dimension: 800mm*800mm*1400mm (L*D*H)

The luminaire suspending test device is for the load performance test of all suspended luminaire and assesses the deformation of components of the suspension system as per IEC60598-1 clause 4.14.1 (test A).

A constant evenly distributed load equal to four times the weight of luminaire shall be added to luminaire in the normal direction of the load for a period of 1h. There shall be no appreciable deformation of the components of the suspension system at the end of this period.
