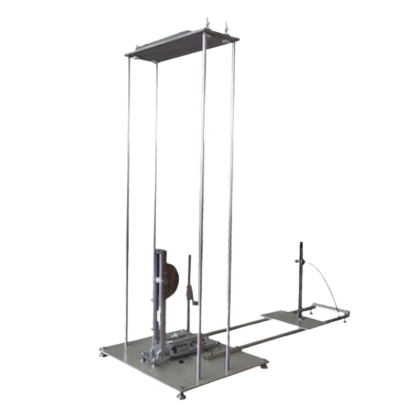

PEGO PG-SHCC ອຸປະກອນການປັບຕົວຄ່າຄວາມດັນປະຕິບັດ Spring Hammer (0.01J, 0-2J)

Accuracy: 0.01J

Repeated Accuracy: ±0.01J

Max measuring range: 0-2J

Calibration striking element: 250g

Reference point: An impact energy of 1J is achieved with a height of 408±1mm

Pendulum rope center distance: 2m

The spring hammer calibration device calibrator is designed according to IEC60068-2-75 Annex B.3 and figure B.5 for checking the impact energy accuracy of spring hammer calibration device. The calibation is made with an impact energy of 1J, which is achieved with a height of fall of 408±1mm, with a calibation striking element of 250g.
