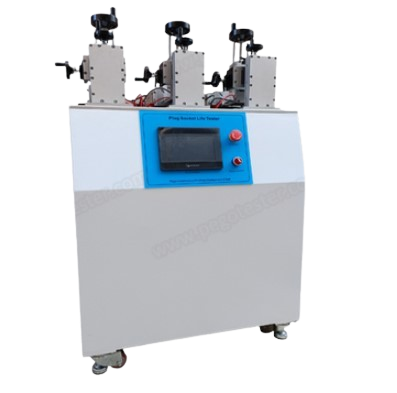

PEGO PG-LTR ອຸປະກອນທົດສອບອາຍຸຂອງປຸ່ມສະຕິກແລະປຸ່ມປ່ອງປະຕູອອກ (4~6kg/cm2, pneumatic)

Working way: pneumatic

Air source: 4~6kg/cm2

Connect and discount time setting: 0.2~999.9s

Test speed: 5~60 times/min adjustable

Counter: 1~999999 times

Working station: 4 stations, 2 for snap switch, 2 for plug and socket-outlet (optional)

Power: AC 220V±10%, 50Hz

Working environment: 0~400C (temperature), ≤85% (R.H.)

Switch plug and socket life tester meets the requirements of IEC60884-1 and VDE0620. It is suitable for test of rocker switch, snap switch, key switch, plug, socket-outlet and coupler of household appliance. Its aim at checking the switch whether is able to withstand the mechanical damage and electrical fatigue damage in normal use, and if there are adhesion phenomena or prolonged closed or disconnected phenomena occur, inspect whether there are excessive wear and other harmful consequences with it. Equipped with power load(resistive, inductive, capacitive), it can do live test, normal operation and breaking endurance test.

The life tester uses the cylinder as the power to drive the slide rail assembly with clamps to do reciprocating rectilinear movement, thereby completing the insertion and extraction of the plug and the socket. The operating frequency and switching time are controlled by PLC and LCD display.
