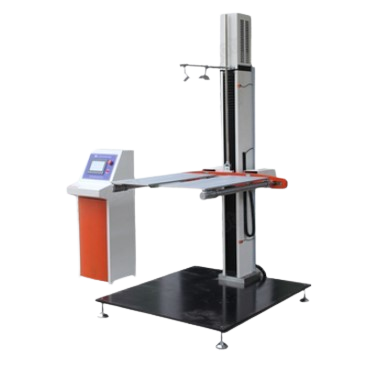

PEGO PG-FFD ອຸປະກອນທົດສອບການຕົກລົງຟຣີ-ຟອນຂອງກະຕ່າງ (400-1500mm, 80KG)

Overall size

L1200mm * D1100mm * H2050mm (test rig)

L400mm * D430mm * H1150mm (control box)

L780mm*W280mm

Control unit: Touch screen

Maximum size of test specimen: L800mm * W800mm * H1000mm

Maximum weight of test specimen: 80KG

Falling height: 400-1500mm

Error of falling height: ±10mm

Impact surface

Error: < 1⁰

Material: steel

Thickness: 20mm

Dimension: L1200mm*W1100mm

Working power: 220V/50Hz

The free fall drop test equipment is used for simulating a free fall drop of the container during the normal transit and rough handling, the test can be applied to a face, corner or edges of a container, and can meet the test requirements of CNAS 29999, ISO 2248-1985, ASTM D5276, IEC60068-2-75 and etc..

The free fall drop test can evaluate the ability of a container to withstand the sudden shock resulting from a free fall drop impact, or evaluate the ability of a container and its inner packing to protect its contents during the sudden shock resulting from a free fall drop impact, so that to improve and prefect the container design.
