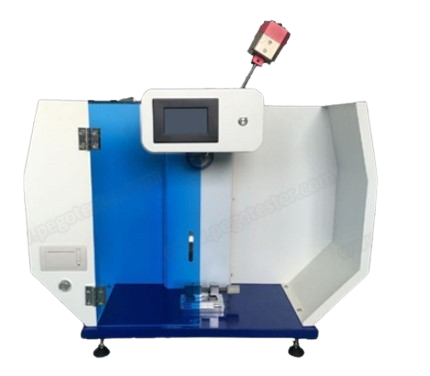

PEGO PG-CTST ອຸປະກອນທົດສອບຄວາມແຂງຂອງການກະທົບ Charpy ແບບດິຈິຕອນ (2.9m/s or 3.8m/s)
Display: LCD touch screen (built-in micro-printer)
Units: J/m,KJ/m2 , kg-cm/cm, ft-ib/in
Angle accuracy: 0.010
Impact energy accuracy: 0.01J
Impact speed: 2.9m/s or 3.8m/s
Distance between hammer to sample: 230mm, 395mm
Angle: 150°
Jaw support spacing: 40mm, 60mm, 70mm, 95mm
Support blade corner radius: R=1mm
Impact blade angle: 30°
Impact blade corner radius: R=2mm±0.5mm
Impact energy
1J,2J, 4J, 5J (impact speed: 2.9m/s )
7.5J,15J,25J,50J (impact speed:
3.8m/s)
The digital charpy impact strength tester is mainly used for the determination of impact toughness of non-metallic materials such as hard plastic, reinforced nylon, glass reinforced plastic, ceramic, cast stone and electrical insulating materials. It is an ideal test equipment for chemical industry, scientific research institution, universities and colleges, and quality inspection departments. Meet the requirements of ISO179-2000, GB/T1043-2008, JB/T8762-1998 and GB/T 18743-2002.
