Control mode: Manual control
Test station: 1
Test stand: knife-edge fulcrum principle, with good
sensitivity
Weights: 6N*1, 10N*1
Beam scale: 0-25cm
Lampholder jigs: E14, E27, B22
Force moment adjustment: the weights work with 0-25cm beam
scale to produce the corresponding force moment: 6N: 0.006-1.5Nm, 10N: 0.1-2.5Nm
Maximum mass of luminaire: 1.8KG (E14 amd B15 lampholders) |
2KG (E27 and B22 lampholders)
Maximum bending moment: 0.9Nm | 1.8Nm
Dimension: 300mm*50mm*300mm (L*D*H)

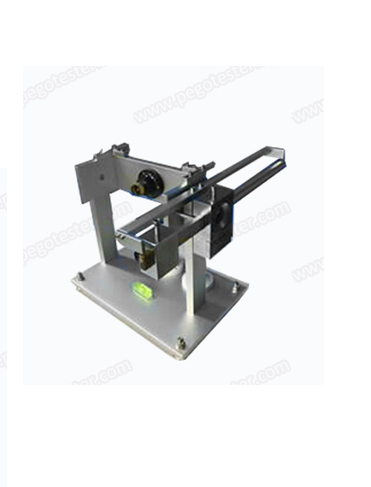

The test device is designed to meet the test requirement of IEC60598-1 clause 4.14.2, it is applied for bending moment test for semi-luminaires. For the semi-luminaires intended for connection to Edison screw or bayonet lampholders the mass and effective bending moment shall not exceed the maximum value.
