PEGO PG-ACR ເຄື່ອງທົດສອບລົດມືອັດຕະໂນມັດ (1~40 times/min, 0~9999)

Test speed: 1~40 times/min (adjustable)

Test times: 0~9999 (The test will stop automatically after the specified number of test times)

Test Angle: 30⁰~70⁰ (adjustable)

Drive way: pneumatic

Working air source (Air compressor): 5~7kg/cm2 (prepared by user)

Fixture: Customized according to specimen

Working plate: Size: 600mm*600mm (customized)

Stretching stroke: Max. 1000mm (adjustable)

Working power: 220V/50Hz

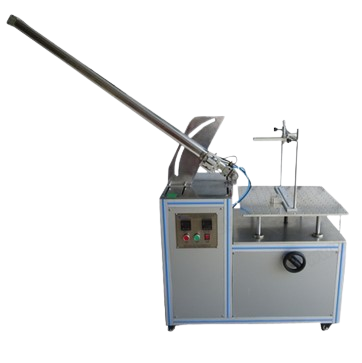

The automatic cord reel testing machine is designed according to IEC60335-1 clause 22.16. It is applied to check if the cord reel construction of household and similar electrical appliance will cause: 1) undue abrasion or damage to the sheath of the flexible cord. 2). breakage of conductor strands. 3). Undue ware of contacts. The automatic cord reel testing machine adopts multi-function fixture and large work plate, it can test up to 300cm reel, the test speed can be adjusted at the range of 1 to 40 times/min.
