PEGO OHSP350F ເຄື່ອງວັດຄວາມສະຫວ່າງແບບກະຕຸ້ນ LED (380nm~780nm, 2nm)

Wavelength range: 380nm~780nm

Spectral mode: Telephoto optical system

Sensor: Colorimetric: CCD, flicker: silicon photocell

FWHM: 2nm

Resolution and repeatability: 0.2nm, ±0.0005 (x, y)

Wavelength accuracy: ±0.5nm

Illumiance accuracy: Class 1 (±4% reading+1 digit)

Photosensitive surface: Φ10mm

Chromaticity coordinates accuracy: ±0.0025

Color temperature range: 1000K~100000K

Straylight: ≦0.3%

Illumiance range: 5lx~200klx

Frequency sampling rate: 1~10KHz

Frequency range: 25~1KHz

Integrated time: 50μs~10000ms

Working environment: -10~40℃, <70% R.H.

Screen: 5 inch*IPS HD LCD touch screen

Interface: Micro USB

Storage: 8G TF card

Power supply: Li-battery with adaptor

Accessories: 8G TF card, data cable, power adapter and etc.

Size: 135mm*80mm*8mm (Height*width*thickness)

Weight: 430g

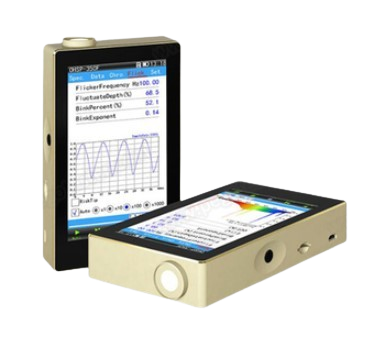

Flicker photometer (model: OHSP350F) is a protable equipment to fast test the spectrum, color rendering index, illuminance, color temperature, scintillation Index, flicker percentage, scintillation depth, flicker frequency of LED lightings at site. 250KHz high speed sampling for measuring transient sources. The filicker photometer is built in CCD sensor made by Japan and Information processing chips made by USA to ensure the stability of acquisition of optical signal and precision and repeatability of the equipment. Equip with software, the equipment can connect with PC to display and print the test report.
