PEGO OHSP-350P ອຸປະກອນວິເຄາະແສງພື້ນໄມ້ (350nm~800nm, 2nm)

Wavelength range: 350nm~800nm

Spectral mode: Telephoto optical system

Sensor: Colorimetric: CCD

FWHM: 2nm

Resolution and repeatability: 0.2nm, ±0.0005 (x, y)

Wavelength accuracy: ±0.5nm

Illumiance accuracy: Class 1 (±4% reading+1 digit)

Photosensitive surface: Φ10mm

Blue light hazard test function: NO

Plant growth light test parameters: YES

UV test function: NO

TCLI TV Lighting Consistency Index: YES

Chromaticity coordinates accuracy: ±0.0025

Color temperature range: 1000K~100000K

Straylight: ≦0.3%

Illumiance range: 5lx~200klx

Integrated time: 50μs~10000ms

Working environment: -10~40℃, <70% R.H.

Screen: 5 inch*IPS HD LCD touch screen

Interface: Micro USB

Storage: 8G TF card

Power supply: Li-battery with adaptor

Accessories: 8G TF card, data cable, power adapter and etc.

Size: 135mm*80mm*31mm (Height*width*thickness)

Weight: 430g

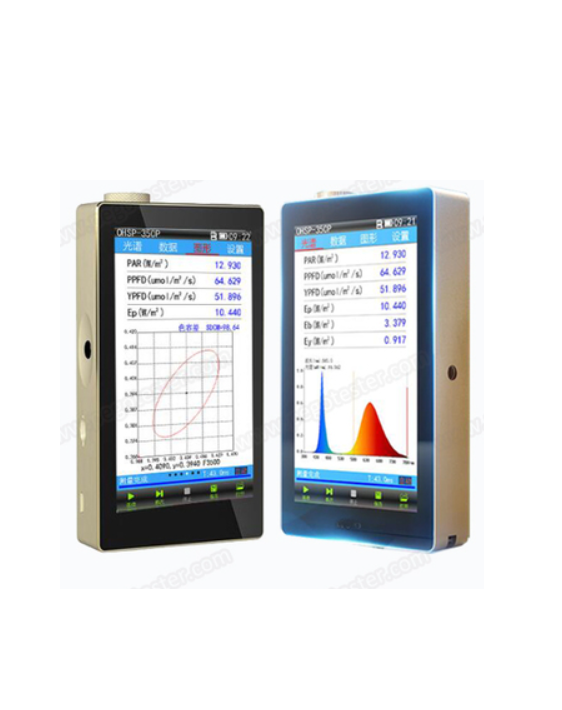

OHSP350P Plant light analyzer is a protable equipment to test PAR (Photosynthetically active radiation), PPFD (Photosynthetic photon flux density), YPFD (Effective photosynthetic photon flux density), Eb (Blue-violet irradiance), Ey (Yellow-green irradiance), Er (Red-orange irradiance), Rrb ratio (Red and blue irradiance ratio), CT (color temperature), lx (illuminance), CRI (color rendering index), chromaticity coordinates and etc. for Plant growth lamp. The plant light analyzer is widely applied to on-site monitoring of light radiation of plant growth lamp manufacturers, plant soilless cultivation and greenhouses.
