PEGO NF-1 ເຄື່ອງທົດສອບແສງເພື່ອນເຂົາ (Φ 0.5mm ± 0.1mm, ≤Φ 0.9mm)

Control system: single chips and push buttons

Burner

Inner diameter: Φ 0.5mm ± 0.1mm

Outer diameter: ≤Φ 0.9mm

Length: 35mm

Material: stainless steel

Burner angle: 45⁰ or 90⁰

Ignition layer: White pine board with thickness 10mm, and cover with wrapping tissue 12g/m2 ~30g/m2

Application time: 0-999.9s±0.1s adjustable (normally 30s)

Burning duration: 0-999.9s±0.1s (auto record, manual pause)

Flame height: 12mm ± 1mm (adjustable), Measuring with a steel ruler

Burn gas: ≧95% butane gas or propane gas (prepare by user)

Flame requirement: rising time from 100℃±2℃ to 700℃±3℃ should within 23.5s±1s

Thermocouple: Φ0.5mm K type thermocouple (The insulating sleeve heat resist to 1100 ℃)

Temperature sensor: Copper with Φ4mm and 0.58±0.1g weight, equip with K type thermocouple

Thermal radiation baffle: Automatic masking

Safe operation interface: automatically power off upon open the glass window

Test space: ≥ 0.5m3 , matte black background, illuminance ≤ 20Lux, exhaust hole: Φ70mm (Power on automatic work)

Test period: auto control

Pick-up tray: Yes

Gas calibration device: Built-in temperature measuring box, gas calibration can be executed before test

Accessories: Wrapping tissue, flat smooth wooden board, height gauges and etc..

Standard: IEC60695-11-5 (IEC60695-2-2), EN60695, GB/T51669.5, GB4706.1

Equipment size: 1000mm(W)*650mm(D)*1300mm (H)

Power supply: AC220±10%, 50Hz, 0.3KVA

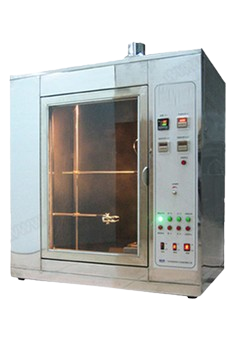

Needle flame tester is designed according to IEC60695-11-5 (IEC60695-2-2). It is applicable to ignition hazard test, combustibility test of electronic industry and home electronic appliance. The equipment specifies a needle-flame test to simulate the effect of a small flame which may result from fault conditions, in order to assess product and material’s ignition risk and fire resistance by a simulation technique the fire.

The Needle Flame Tester consists of a dia.0.9mm needle burner that tilts to 45 degree from the vertical and is fueled with butane gas. The fire hazard of the specimen is assessed by measuring the burning duration of the specimen, and any ignition of the wrapping tissue and white pine board below the specimen.

This equipment is controlled by single chips and push buttons, the shell is made of stainless steel. The test apparatus is built-in air exhaust. The front panel is transparent for easy observation of the experimental process.process.
