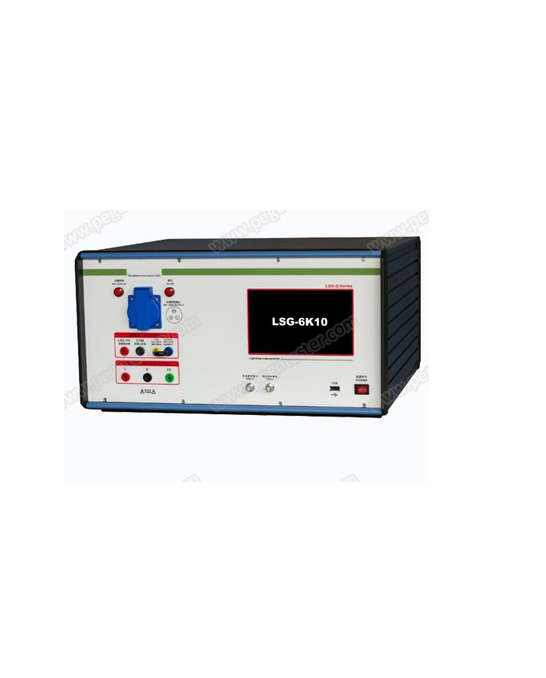

PEGO LSG-6K10 ເຄື່ອງສ້າງສະຕູດໄຟຟ້າລົມພະຍາດ (6KV, 1.2/50µs, 8/20 µs)

Output voltage (open circuit): 6kV (Max) ±5%

Front time: 1.2μs ±30%

Time to half-value: 50μs ±20%

Output current (short circuit): 3kA±5% (max)

Front time: 8μs ±20%

Time to half-value: 20μs ±20%

Output polarity: Positive, negative, positive/negative automatically

Output impedance: 2Ω, 12Ω

Trigger mode: Synchronization, asynchronization

Inject phase: Freely set at 0－360°, resolution:1°

Trigger mode: Auto or manual, single

Surge times: 1-9999 times

Memories: 1000 groups

Surge interval: 20-9999s

Accuracy: 5%

Capacity of built-in CDN

AC：single phase 300V, 10A（16AMax）, 50/60Hz

DC：300V, 10A（16AMax）

EUT power supply: AC110-220V±10%, 50/60Hz

Coupling mode: L-N, L-PE, N-PE, L+N-PE

Built-in network coupling components

Line to line: 18μF capacitor

Line to ground: 10Ω resistor + 9μF capacitor

Working environment: Temperature:15°C－35°C humidity:0%－75%

Power supply: AC220±10%, 50/60Hz

Dimension: 470mm(W)×260mm(H)×500mm(D)

Weight: About 30kg

The combination wave lightning surge generator is designed according to IEC61000-4-5 and GB/T17626.5, and completely meet the test requirements of the standards. It is widely used in the fields of industry control equipment, house-holding appliance,medical electronics, communications electronics,components, auto control equipment and etc..

Lightning surge generator is to simulate the surge voltage caused by switching transient and lightning transient, the surge immunity test is a destructive test to found out the surge voltage effect to EUT in normal working condition. This equipment can generate an open-circuit voltage surge 1.2/50μs and an open-circuit current surge 8/20μs. The effective output impedance is 2ohm. The surge is applied to the AC or DC supply lines of the EUT. The test voltage can be customized, user can choose and define the test levels. The voltage and current of coupling and decoupling network can be customized, and CDN can be built-in the surge generator.
