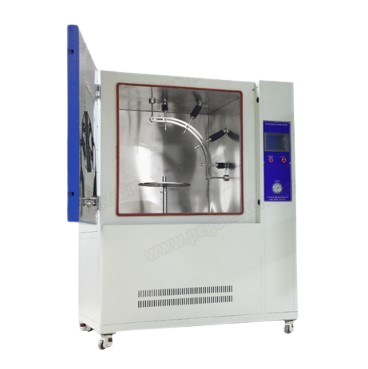

PEGO IPX9K ຫ້ອງທົດສອບການພັດລະອຸນຫະພູມສູງແລະຄວາມດັນສູງ Jet Spray (8000-10000Kpa, 14～16L / min)

Inner size: L1000*D1000*H1000mm (depends on the specimen)

External size: L1400*D1180*H1850mm

Test time: 30S for each position

Jet angle: 0°30°60°90°

Numbers of jet: 4

Diameter of turntable: 400mm

Lifting mode of turntable: Fixed type

Spray distance: 100-200mm (manual control)

Water pressure: 8000-10000Kpa

Water flow: 14～16L / min

Temperature: 25℃ (room temperature), 80±5℃

Test time: 120s (30s/position)

Rotational Speed: 4～10r/min(adjustable)

Bear weight: 50kg

Protection device: Leakage, water break, short circuit

Power(V): 380V/50Hz

Sample Power (V): 220V

Power(KW): 10

IPX9K high pressure and temperature Jetproof Test Equipment is designed according to IEC60529, DIN40050-9 figure 7 and ISO20653 figure 8 and 9 for verifying protection against high pressure/steam jet cleaning. The test is applied to electrical equipment in road vehicles, motors, electric components and auto parts to do the waterproof test. After the test, the user can judge if the performance of the product can meet the requirements or not, and then do the re-designing and improvement.
