PEGO IPX56FS ອຸປະກອນທົດສອບນ້ຳກຳລັງແຮງ IPX5 ແລະ IPX6 (300*800*1300 (L*W*H))

Control system: Time replay+IPX5/6 change-over switch

Outer size (mm): 300*800*1300 (L*W*H)

Aperture diameter of IPX5 nozzle: 6.3mm

Aperture diameter of IPX6 nozzle: 12.5mm

Delivery rate for IPX5 (L/min): 12.5±0.625

Delivery rate for IPX6 (L/min): 100±5

Water pressure (Mpa): As per the standard requirement

Flowmeter control: Manual control

Distance from specimen: 2.5~3m (manual control)

Nozzle fixed way: Hand-held

Material: SUS304 stainless steel

Protection: Electric leakage, hydropenia, short circuit

Working power: 380V/50Hz, 3KW

Power for EUT: 220V/50Hz

Working condition: 5~35℃, ≤85%, 86kPa～106kPa

Water source

1. The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet.

2. The faucet is not more than 2 meters away from the equipment

IPX5/6 strong jet water simplified test device is designed according to IEC60529 clause 14.2.5 and 14.2.6. Waterproof test simulates the condition of water jets and powerful water jets, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect.

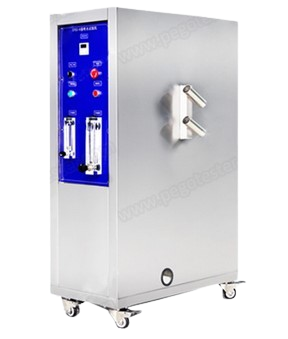

The simplified test device is consisted by control units, Φ6.3mm and Φ12.5mm jet hose nozzles, the equipment is equipped with 4 casters so that it can be moved at will.
