PEGO IPX34B ຫ້ອງທົດສອບ IPX3 ແລະ IPX4 ກັນນ້ຳພັດແລະກັນນ້ຳກະທົບ (R600, R400, R200)

Tube Radius: R600 | R400 | R200

Outer size (L*W*H): 1800*1520*1950 (mm) | 1400*1120*1750 (mm) | 1000*680*1440 (mm)

Inner size (L*W*H): 1300*1300*1300 (mm) | 900*900*900 (mm) | 500*500*500 (mm)

Delivery rate (L/min): 0~3 | 0~2 | 0~1

Bearing: 50KG | 50KG | 50KG

Aperture of nozzles (mm): 0.4

Tube angle: 120⁰ (IPX3), 360⁰ (IPX4)  or user-defined

Rotation speed of tube: 4s for 2*120⁰, 12s for 2*360⁰  or user defined

Material of tube: SUS304 stainless steel

Rotation speed of turntable: 1~5r/min

Protection: Electric leakage, hydropenia, short circuit

Working power: 220V, 50/60Hz, 1KW

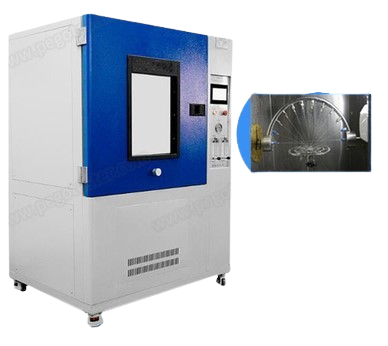

IPX3 and IPX4 waterproof test chamber with oscillating tubes is designed according to IEC60529 clause 14.2.3 and 14.2.4. It is applied to simulate the electronics, luminaire, electric components and auto parts under the conditions of spraying water and splashing water, and then tocheck if they can meet the requirements. This is a chamber-type equipment, the water can be recycled. The radius of oscillating tubes for chamber is R200, R400, R600 and R800. The chamber is configured with a turntable, the bearing capacity of the turntable is 50KG, and it can customized as per user's requirement.
